Specifications Equipment specifications:
Digital input:
Lightning Link (Up to 384K/32bit, DSD512)
USB Audio (Up to 384K/32bit, DSD512)*
AES/EBU (Up to 192K/24bit, DSD64 via DoP)
Coaxial (Up to 192K/24bit, DSD64 via DoP)
TOSLINK (Up to 192K/24bit, DSD64 via DoP)
Digital output:
Lightning Link (Up to 384K/32bit, DSD512)
USB Audio (Up to 384K/32bit, DSD512)*
AES/EBU (Up to 192K/24bit, DSD64 via DoP)
Coaxial (Up to 192K/24bit, DSD64 via DoP)
TOSLINK (Up to 192K/24bit, DSD64 via DoP)
Distortion:
THD+N: <-165dB (Resample to PCM 44.1K - 384K)
THD+N: <-155dB (Resample to DSD128 - DSD512)
THD+N: <-150dB (Resample to DSD64)
Dimensions: 340 x 320 x 96 mm (W x D x H)
Weight: 9.5kg
Processing Features
Signal Reclock and Jitter Removal****
PCM and DSD Resampler
8-Band Parametric Equalizer
Speaker Placement Compensation
High Precision Digital Volume Control
Processing Platform
AURALiC Tesla G1 for general hardware control
AURALiC Proteus G2 for music signal processing
Power Supply
Triple-Channel Purer-Power internal linear power supply, 10uV low noise design for audio circuits
Internal Clock
Triple Femto Clocks for Digital Outputs, USB Output and Proteus G2
Noise Elimination
Dual Galvanic Isolation for digital and USB audio outputs
Unity Chassis II with copper EMI shielding enclosure
Network
Gigabit Ethernet (For firmware upgrade use)
Power Consumption
50W at max.
Dimensions - W x D x H
13.4 x 12.6 x 3.7 in. (34cm x 32cm x 9.6cm)
Weight
21.0 lbs (9.5kg)
Product Finishing
Anodized aluminum case in matte black with copper EMI shielding enclosure.
Contents

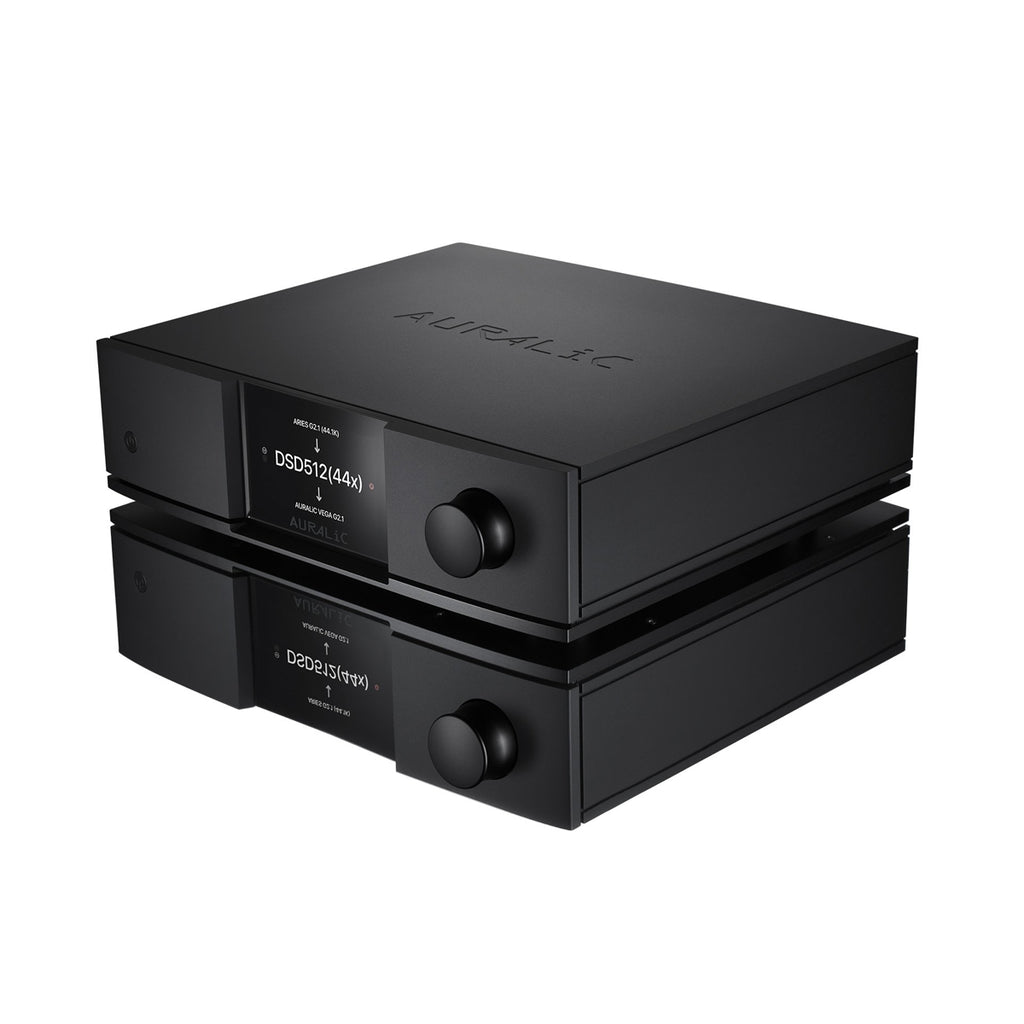

AURALiC SIRIUS G2.1 Upsampling Processor
Power cord
USB Cable
Lightning-Link Cable
User's guide
