KxPRO HDMX42-18G HDMI 處理器 (4x2 HDMI 2.0, HDR10)

KxPRO 全新 HDMX42-18G HDMI 處理器
( 4In x 2Out - HDMI 2.0, 4K/60P Matrix Switcher w/HDR10 & EDID Management)

• Route 4 HDMI Sources to 2 HDMI Displays
• Up to UHD 4K/60 Resolution, 4:2:0
• Separate TOSLINK & Analog Audio Output
• HDR and 16-bit deep color support; supports Dolby Vision, HDR 10+, HLG
• Supports ARC (Audio Return Channel)
• Support for downscaling to 1080p

• Supports source audio extraction via optical TOSLINK or analog L/R outputs
• Supports up to UHD 4K60 resolution with 8/10/12-bit 4:2:0 color and up to 8-bit 4:4:4 color
• HDCP 2.2 compliant
• Front-panel and IR remote control
• Supports advanced EDID management including AUTO, COPY, and STD

  Robust, slim, rectangular design

  Mounting ears included

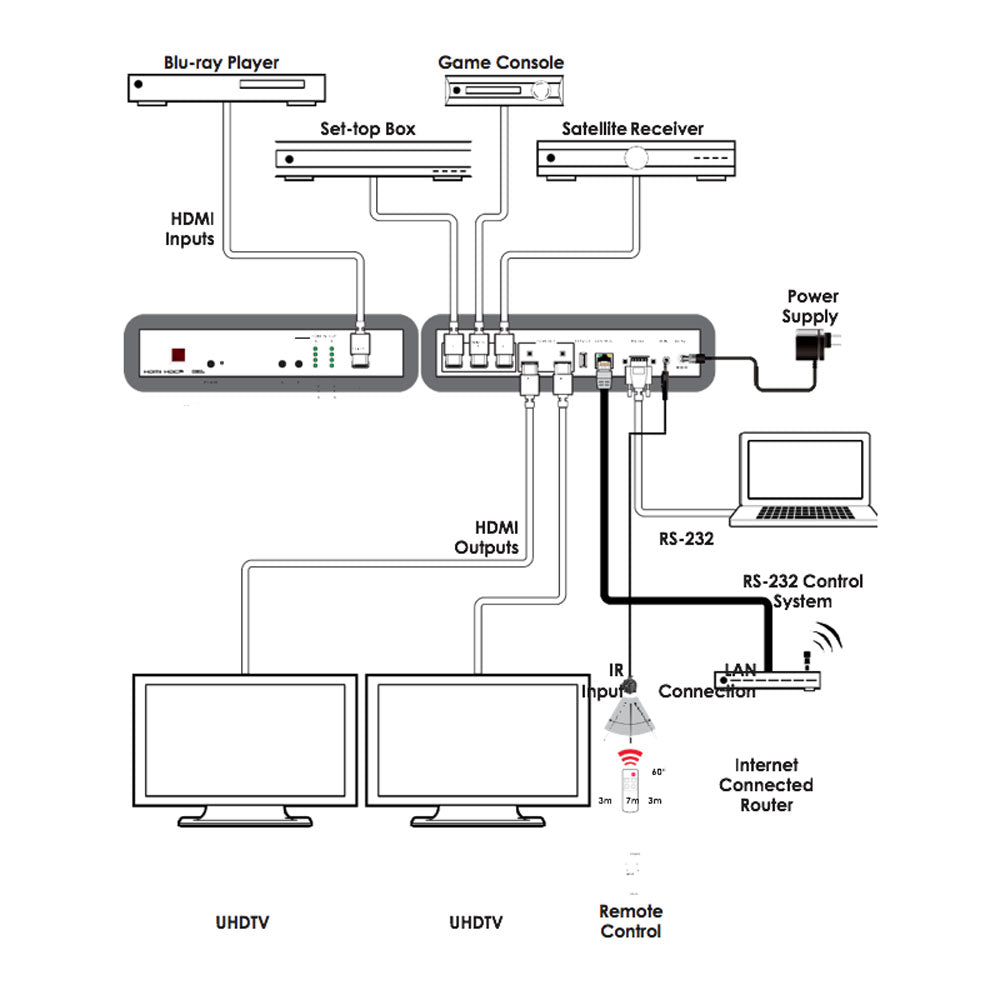

  The 4x2 HDMI 4K60 Matrix Switcher with Audio Outputs from KxPro allows you to display four HDMI sources on two HDMI displays and route one source to the other using the panel control buttons or the included IR remote control. The switcher can also extract audio from the HDMI input and output digital or analog audio with optical TOSLINK and L/R

  KxPro HDMX42-18G Specs

  Processing

  Switching Type	IR Remote, Pushbutton
  Processing Resolution	UHD 4K at 60
  Color Processing	8-Bit 4:4:4 YCbCr 10-Bit 4:2:0 YCbCr 12-Bit 4:2:0 YCbCr

  Input

  Video Input Connectors	4 x HDMI (DVI / HDMI 2.0) Female
  Input Video Format	HDMI (8/10/12-Bit 4:2:0 YCC) UHD 4K: 30/60 fps HDMI (8-Bit 4:4:4 YCC) UHD 4K: 30/60 fps
  Embedded Audio Input	HDMI: 7-Channel (per Input)

  Output

  Video Output Connectors	2 x HDMI (HDMI 2.0) Female
  Output Video Format	HDMI (8/10/12-Bit 4:2:0 YCC) UHD 4K: 30/60 fps 1080p: 30/60 fps
  Audio Output Connectors	1 x 1/8" / 3.5 mm TRS Stereo Analog Female 1 x TOSLINK 8-Channel S/PDIF Female
  Output Audio Format	Analog
  Embedded Audio Output	HDMI

  Connectivity

  Other I/O	1 x USB Micro-B Firmware Input
  HDCP Support	Version 2.2
  HDR Compatibility	HDR10+, Dolby Vision, Hybrid Log Gamma
  DTS Compatibility	DTS, DTS 96/24, DTS Express, DTS-HD High Resolution, DTS-HD Master Audio
  Dolby Compatibility	Dolby Digital, Dolby Digital Plus, Dolby TrueHD

  Power

  Power Connector	1 x Barrel (12 VDC at 1 A) Input
  Power Consumption	Device: 3.8 W Power Supply: 100 to 240 VAC

  Environmental

  Operating Temperature	32 to 104°F / 0 to 40°C
  Storage Temperature	-4 to 140°F / -20 to 60°C
  Operating Humidity	20 to 90%

  General

  Weight

  1.4 lb / 620 g
