General Specifications
| Enclosure Type | Sealed |
| Enclosure Finish | Black Gloss |
| Frequency Response (Anechoic) | 21 - 119 Hz (±1.5dB) -3 dB at 19 Hz / 150 Hz -10 dB at 17 Hz / 167 Hz |
| Effective Piston Area (Sd) | 84 sq in / 0.0542 sq m |
| Effective Displacement | 287 cu in / 4.7 L |
| Amplifier Power | 1.8 kW RMS short-term |
| Power Mode(s) | Off, On or Automatic (Signal-Sensing) |
| Light Modes | Off, On or Dim |

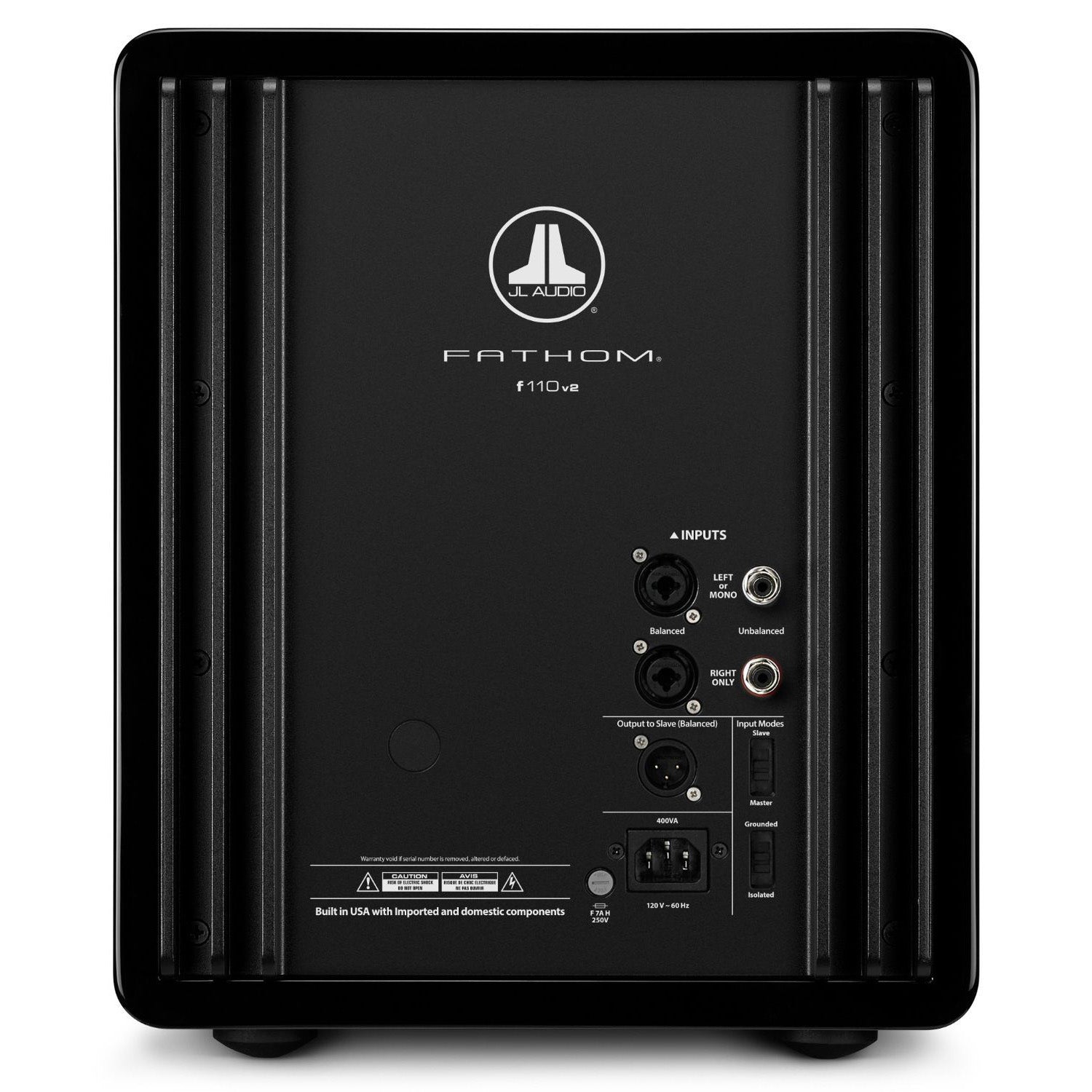

| Unbalanced Inputs | Stereo or Mono (two RCA jacks) |
| Balanced Inputs | Stereo or Mono (two female XLR jacks) |
| Speaker/High-Level Inputs | N/A |
| Input Grounding | Isolated or Grounded |
| Input Modes | Master or Slave |
| Level Control | Reference (fixed gain) or Variable, from full mute to +15dB over reference gain |
| Filter Mode(s) | Low-Pass |
| Filter Slope(s) | 12/24 dB/octave |
| Filter Frequency Range | 30 Hz - 130 Hz |
| Filter Defeat Function | Yes |
| Polarity | 0 or 180 degrees |
| Phase | Variable, 0 - 280 degrees |
| Extreme Low Frequency (E.L.F.) Trim | Variable, -12 dB to +3 dB at 25 Hz |
| Line Outputs | N/A |
| Output to Slave | Balanced (one male XLR jack) |
| Calibration Mode | Digital Automatic Room Optimization (D.A.R.O.), incudes laboratory-grade microphone |
| Width (W) | 15.0625 in / 384 mm |
| Height (H) | 18.5 in / 470 mm |
| Depth (D) | 17.75 in / 451 mm |
| Net Weight | 117 lb / 53 kg |
| Note: Height dimensions include feet. | |
