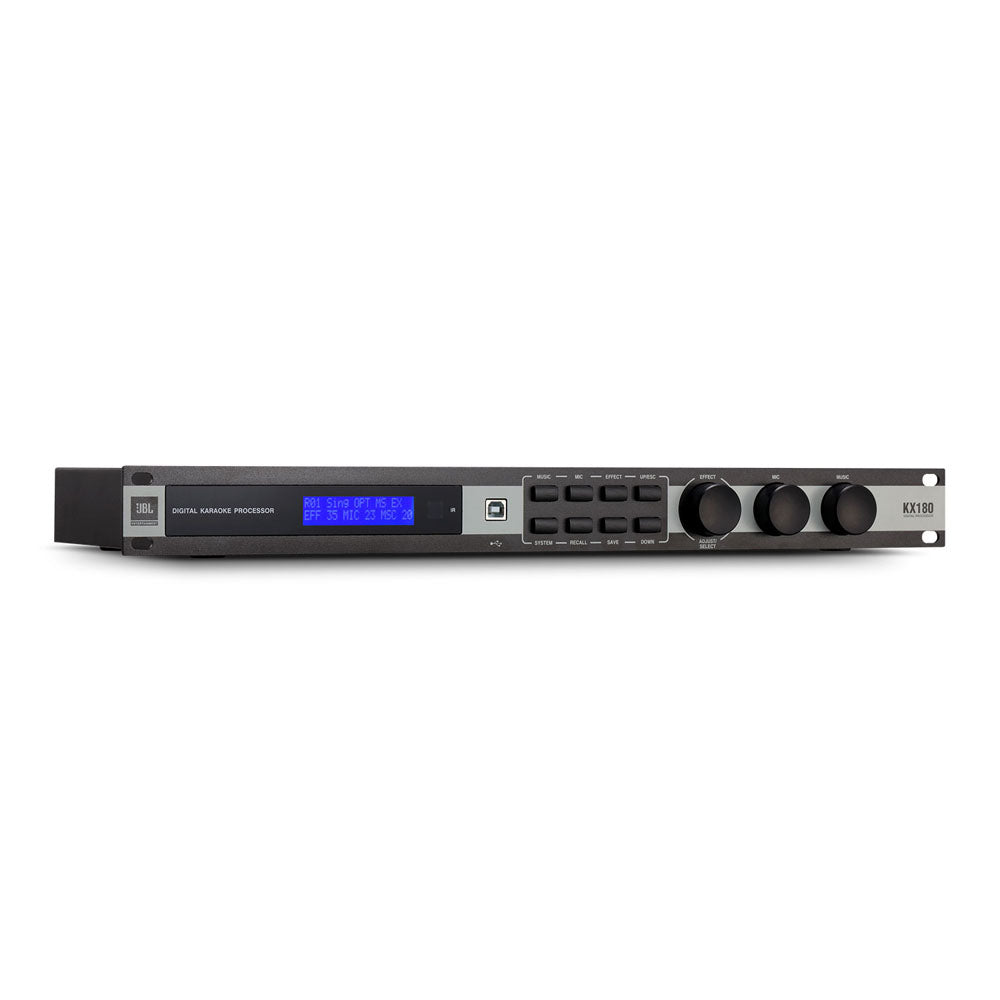

JBL Professional-Grade Digital Processor
JBL KX180 是專為卡拉OK應用而設計的專業級數碼處理器，提供全套音頻處理功能，用於增強或微調音樂和語音。 KX180 配備三個6.5mm 麥克風輸入連接插頭，兩組 RCA 和一組光纖輸入插頭，以及一對用於錄音輸出的RCA連接器。
它支持存儲和調用多達10個預設以及手動或自動控制舞蹈或唱歌模式.
描述
特點:
- Two groups of microphone inputs
- 15-band PEQ and compressor for each Mic Input
- Three levels of Feedback Inhibition for each Mic Input
- Independent control of Echo and Reverberation
- Two pairs of RCA connectors and an Optical connector for Music Input
- 15-band PEQ for Music Input
- Three levels of Excitement for Music Input
- Six output channels: Right, Left, Centre, Sub, Surround Right and Surround Left.
- 10-band PEQ for Right and Left Outputs
- 7-band PEQ for Surround and Centre Outputs
- 5-band PEQ for Subwoofer Output
- Compressor provided for each output channel
- Two independent REC channels can be paired into stereo
- Authority control for front panel controls
- Up to 10 presets can be saved
- Dance or Sing mode of each microphone input channel can be switched manually or automatically
- Professional tool designed for karaoke applications.
Spec 規格:
| Mic Input Type | 3 x 1/4” unbalanced |
| 阻抗 | 7.5K Ohms |
| Level Control | –∞ to +0.8dBu |
| Line Input Type | RCA unbalanced, left & right |
| XLR Output Type | Unbalanced |
| Level | 0dBu Nominal, +14.2dBu Maximum |
| RCA Output Type | Unbalanced, left & right |
|
頻率響應 |
20Hz~20KHz ≤ ±1.0dB |
| THD+N | <0.06% 20Hz to 20KHz |
| 動態範圍 | >100dB |
| A/D | 24bit, 48KHz |
| DSP Processor | High performance 32-bit/40-bit floating-point processor |
| Carrier Frequency | 38KHz |
| Format | NEC |
| Distance | Device dependent |
| Angle | Device dependent |
| Computer Connection | USB 2.0 |
| AC Power Supply | AC 220V/50Hz |
| Dimensions (W X D X H) | 485 X 205 X 47mm |
| 重量 | 2.8Kg |
| Gross Weight | 3.47Kg |
