ATC C4 SUB MK2 Limited Edition

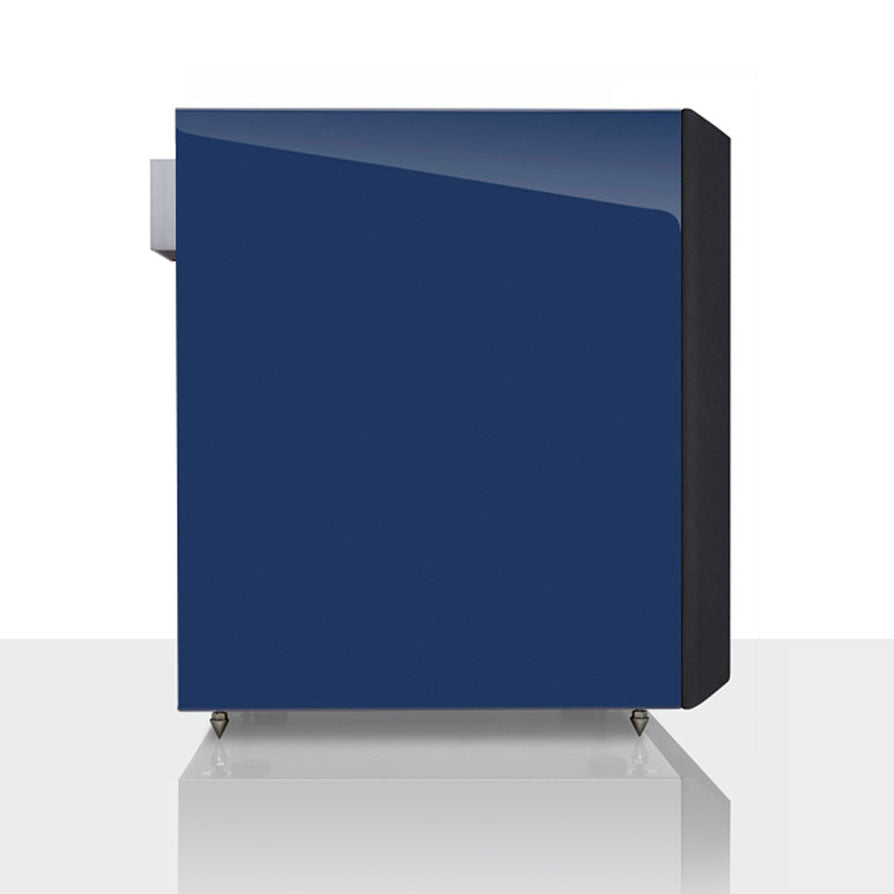

The C4 SUB MK2 LE Limited Edition features German leather specialists Eissmann premium NAPA leather and ATC deep blue accents. The amplifier module on the back panel is a single piece of aluminum alloy with a silver anodized finish, making this Limited Edition subwoofer a rare high-quality subwoofer on the market!

The newly designed 12-inch driver, optimized motor structure, and 300W Class AB amplifier combine to provide audiophiles and movie lovers with a subwoofer of exceptional performance and quality.

The ATC C4 Sub Mk2 Limited Edition is extremely rare, with only 20 units produced worldwide!

The Acoustic Transducer Company (ATC), renowned for its signature high-output, low-distortion audio engineering and trusted by musicians, studio and field sound engineers, and audiophiles for over 50 years, is proud to announce the production of the C4 Sub Mk 2 active subwoofer system. Designed to combine the highest standards of driver and electronic engineering in a single system, the C4 Sub Mk 2 incorporates the new proprietary ATC 12-inch SS75-314SC subwoofer driver, powered by a newly developed 300W Class AB amplifier design. All components are handcrafted and installed at ATC's manufacturing headquarters in Stroud.

New ATC bass driver
The C4 Sub Mk 2 features the all-new SS75-314SC bass driver, the first driver specifically designed for ATC bass systems. Developed by the R&D team, it reproduces the lowest four octaves of the subwoofer's audio band. To achieve this, the design utilizes ATC's signature long gap/short coil configuration to its natural limits, featuring an extra-long 30mm gap surrounded by 6-inch/150mm N48M neodymium magnets. This is ATC's first completely redesigned motor system, incorporating new rubber roller surrounds for high offset capability, new star wheels to optimize compliance geometry, and high-flow motor ventilation for low noise and compression.

The all-new 300W Class AB design is precisely optimized for the requirements of the new drivers, producing fast, dynamic bass with minimal coloration. Two balanced line inputs provide connectivity for stereo or AV/home theater systems, while two balanced outputs can be used to feed collaborating "master" stereo speakers or "daisy-chain" multiple subwoofers. The low-pass filter is an analog fourth-order Linkwitz-Riley with filter frequency options to ensure optimal integration with collaborating speakers. Furthermore, an industry-standard 80Hz low-pass filter and an "off" option (for external processing) are included, along with a polarity switch, variable 180° phase adjustment, and a stepped attenuator with a range exceeding 21 dB for precise level matching.

ACOUSTIC SPECIFICATIONS

Bass/mid driver: 1 x 150mm/6”, SB75-150SL 8Ω

High Frequency Driver: 1 x 25mm/1”, SH25-76S 6Ω

Low Frequency Cut-off: 55Hz (-6dB, anechoic)

High Frequency Cut-off: 25kHz (-6dB)

Crossover Point: 2.2kHz

MaxSPL: 108dB continuous, 114dB peak (per pair, IEC Weighted Pink Noise, 1m, anechoic).

Sensitivity: +4dBu rev ​​95dBC (Bass Boost 0dB, Input Sensitivity 1V, Pink noise).

ELECTRONIC SPECIFICATIONS

Balanced Input: 1 x Rear Panel Mounted Female XLR, pin 2 hot

Input Impedance: 20kΩ (diff ferential)

Input CMRR: >60dB at (10kHz)

Input Sensitivity: 2.2dBu/1Vrms for full power

Input Sensitivity Control: -6dB switchable, -6dB variable. Total adjustment 2.2dBu/1Vrms to 14.2dBu/4Vrms

Bass Shelf: -2dB to +3dB, switchable in 1dB steps

Crossover Filters: 2nd Order Linkwitz Riley

Amplifier type: Grounded Source MOSFET, class A /B, convection cooled

Output Power: Bass 200W (8Ω), HF 50W (8Ω)

THD+N: <0.0017%/-95dB (1kHz, 1dB below rated power, 90kHz BW)

Frequency Response: <2Hz to >200kHz (-3dB)

Limiter: ATC Active FET Momentary Gain Reduction

Electronic amp protection: Amplifier dc of fset and over-temperature (both indicated by rear panel LED)

Mains Input: 220-230V or 115V, factory set. Please observe panel markings and labels!

Power Consumption: Idle 26W/41VA. ^1/8_​ Power 116W/116VA. Full Power 312W/398VA

Heat Output: Idle 89 BTU/hr ^1/8_​ Power 311BTU/hr, Full Power 382BTU/hr

PHYSICAL SPECIFICATIONS

Net Weight: 27kgs/59.5lbs

Dimensions: HxWxD 450x250x425mm 17 ^11/16 _” x 9 ^13/16 ” x ₁₄ ^3/16 _”
