Description
The NEW M70 Miller & Kreisel delivers everything and then a little more.
NEW design – form and function are optimized for today's listening and viewing experience. The décor-friendly On-Wall design gives the customers the flexibility for an easy and simple installation where performance and esthetic are the core elements.

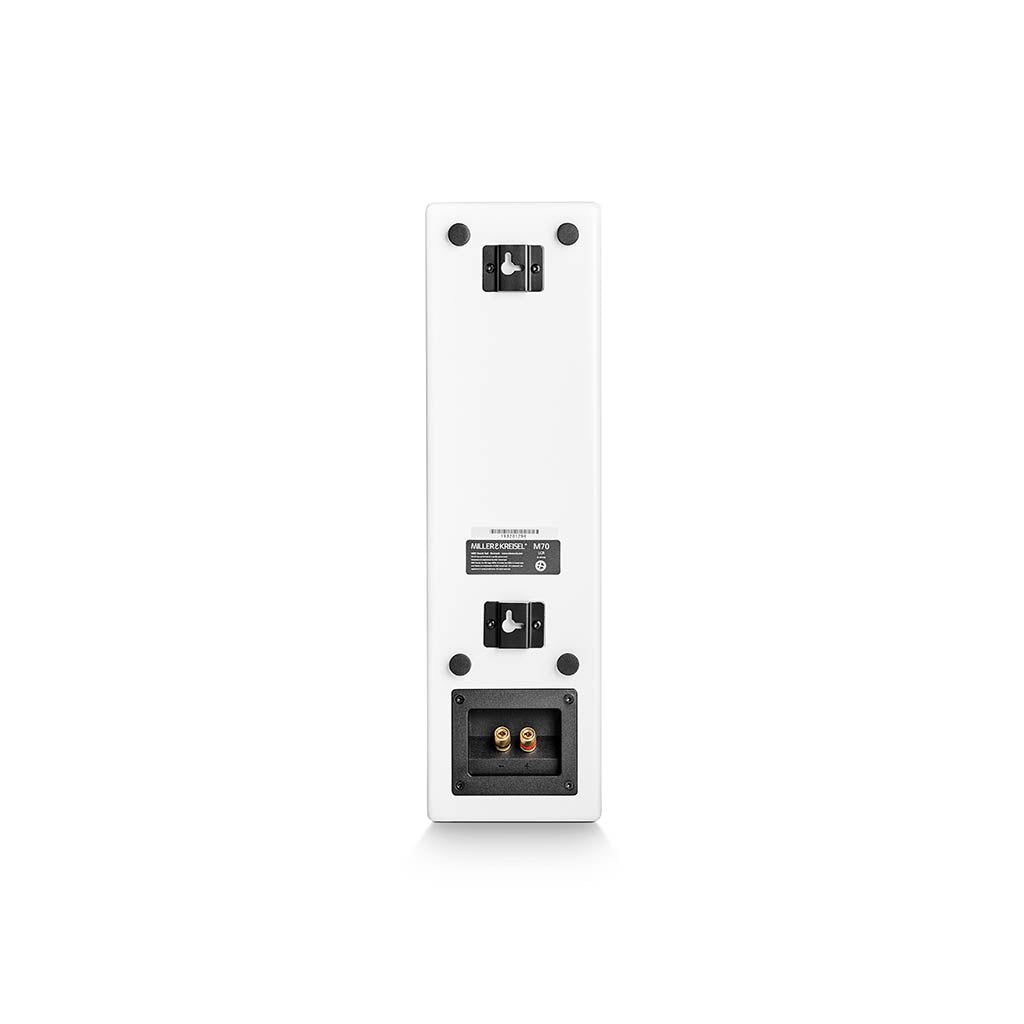

The ultra slim, low-profile enclosure is the benchmark for the NEW M Series. All model is designed specifically for direct On-Wall mounting and is fitted with integral rear panel brackets, along with specially designed damping pads to ensure easy and vibration-free installation. All mounting accessories is included providing a simple and hassle-free installation
All models feature new components as well as a new improved cross-over making each model a true voice match within the M Series.
Specifications for the M70 Speaker
Sound
| Impedance | 4 ohms |
| Frequency Response: | 80 – 20Khz (+/- 2dB) |
| Frequency Roll Off: | 80Hz (-10dB 80 Hz near field wall mounted) |
| Crossover Frequency: | 1.8Khz |
| Tweeter (shielded): | 1” Dome – Coated silk dome / Neodymium magnetFrequency |
| Woofer (shielded): | 2 x 4” coated glass fibers |
| Power Handling: | 125 watts (Long term IEC-268-5) |
| Power Handling: | 70 watt (Rated IEC-268-5) |
| Recommended Amplifier Power: | 25-200W |
| Sensitivity: | 89 dB |
| System Principle: | Sealed enclosureWall |
| Connection: | Terminal gold plating (Screw for 5 mm cable / Banana) |
Dimensions

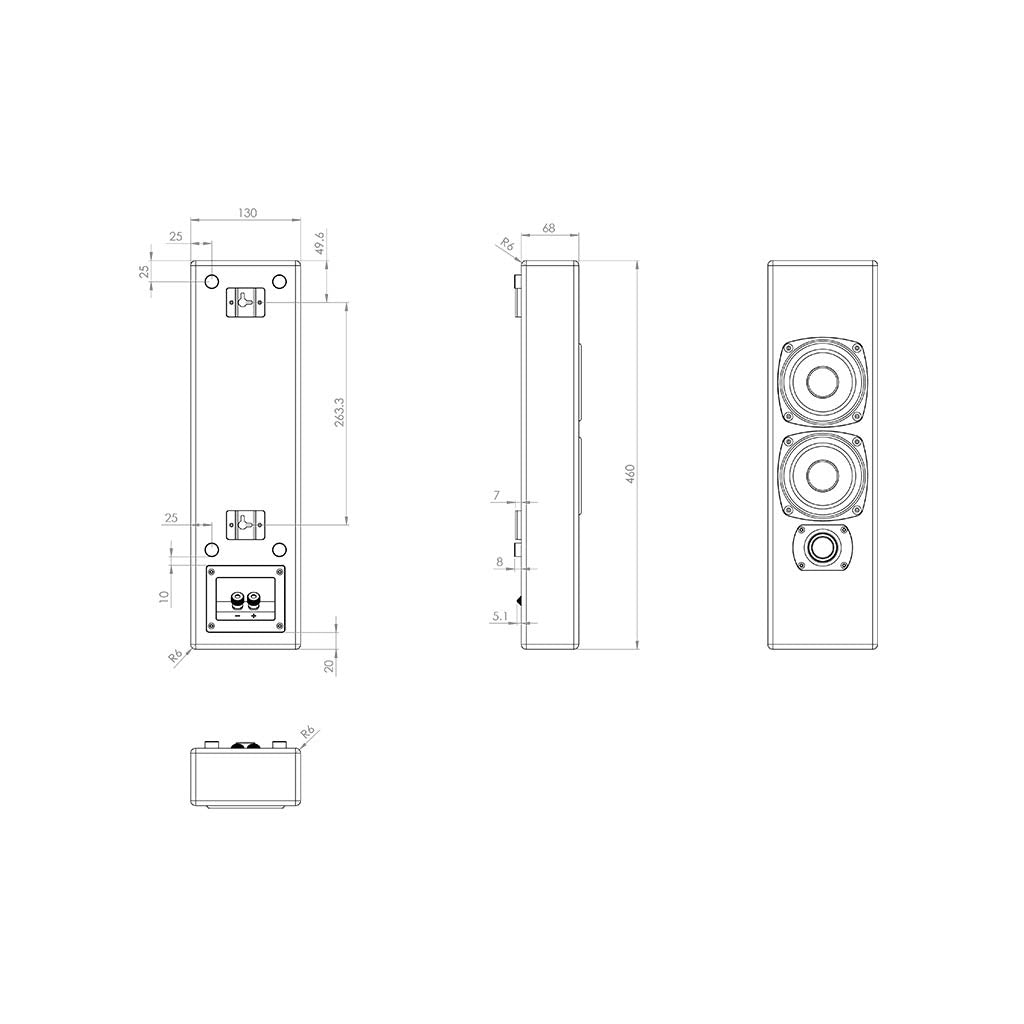

| Dimensions HxWxD: | 18,1 x 5,1 x 3,3” / 46 x 13 x 8,8 cm |
| Weight: | 8.4 lb / 3,8 kg |
Colors
| Finish: | Black/White satin |
