AIM NA X [New Flagship LAN Line Made in Japan Debuts]

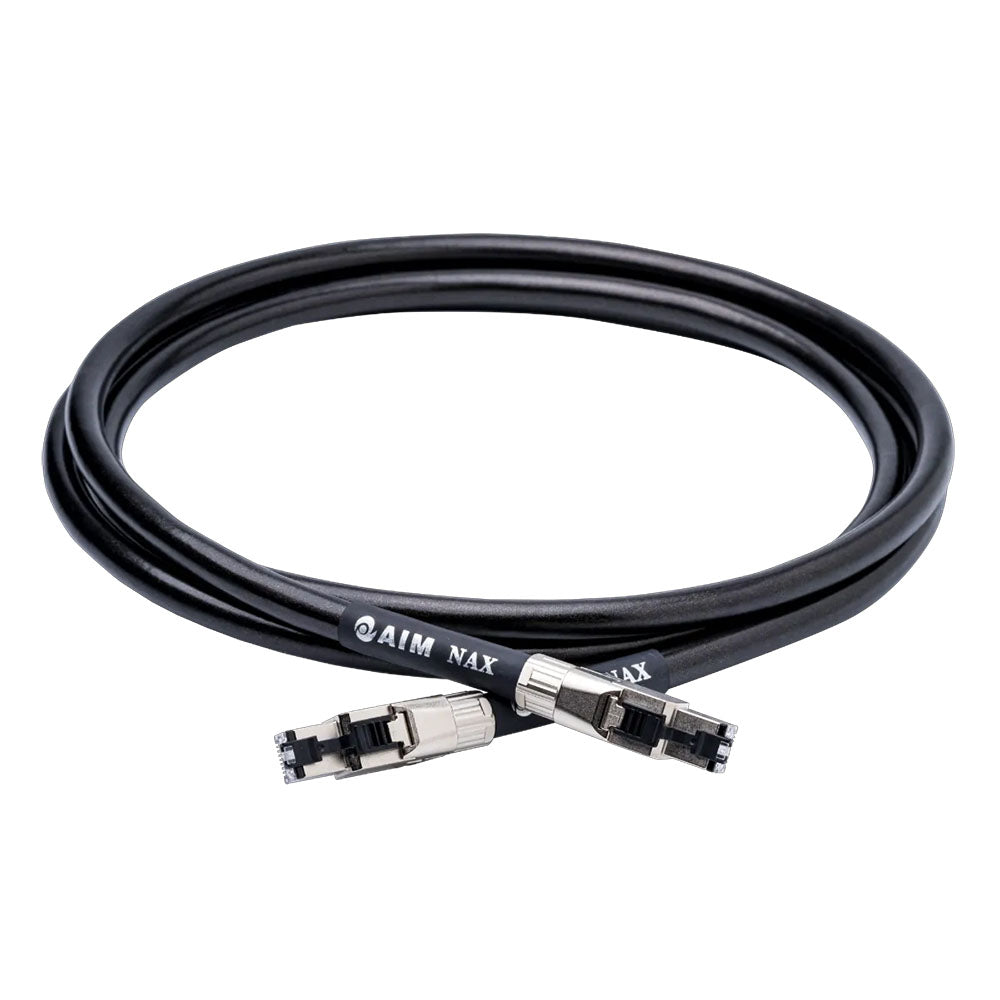

The N AIM NAX flagship audio network cable is a top-of-the-line network cable designed for high-end audio enthusiasts. It utilizes high-purity oxygen-free copper conductors with a pure silver coating, combined with a four-layer shielding structure (high-specification double-layer aluminum shielding and high-density copper braided shielding) to effectively isolate electromagnetic interference. Equipped with "Air 2" foamed insulation and noise-resistant die-cast modular connectors, it achieves superior transmission performance. Its asymmetrical structural design further reduces the impact of external environmental factors, ensuring pure and delicate sound quality, making it an ideal choice for those seeking ultimate sound performance.
AIM NAX LAN Cable design features:
- The newly developed dedicated silver conductor uses Japanese-made pure silver and high-purity oxygen-free copper as the support, which avoids breakage during network cable twisting due to the softness of pure silver, preventing air leakage.
- The asymmetrical structural design makes it less susceptible to external environmental influences.
- The music playback contains more information.

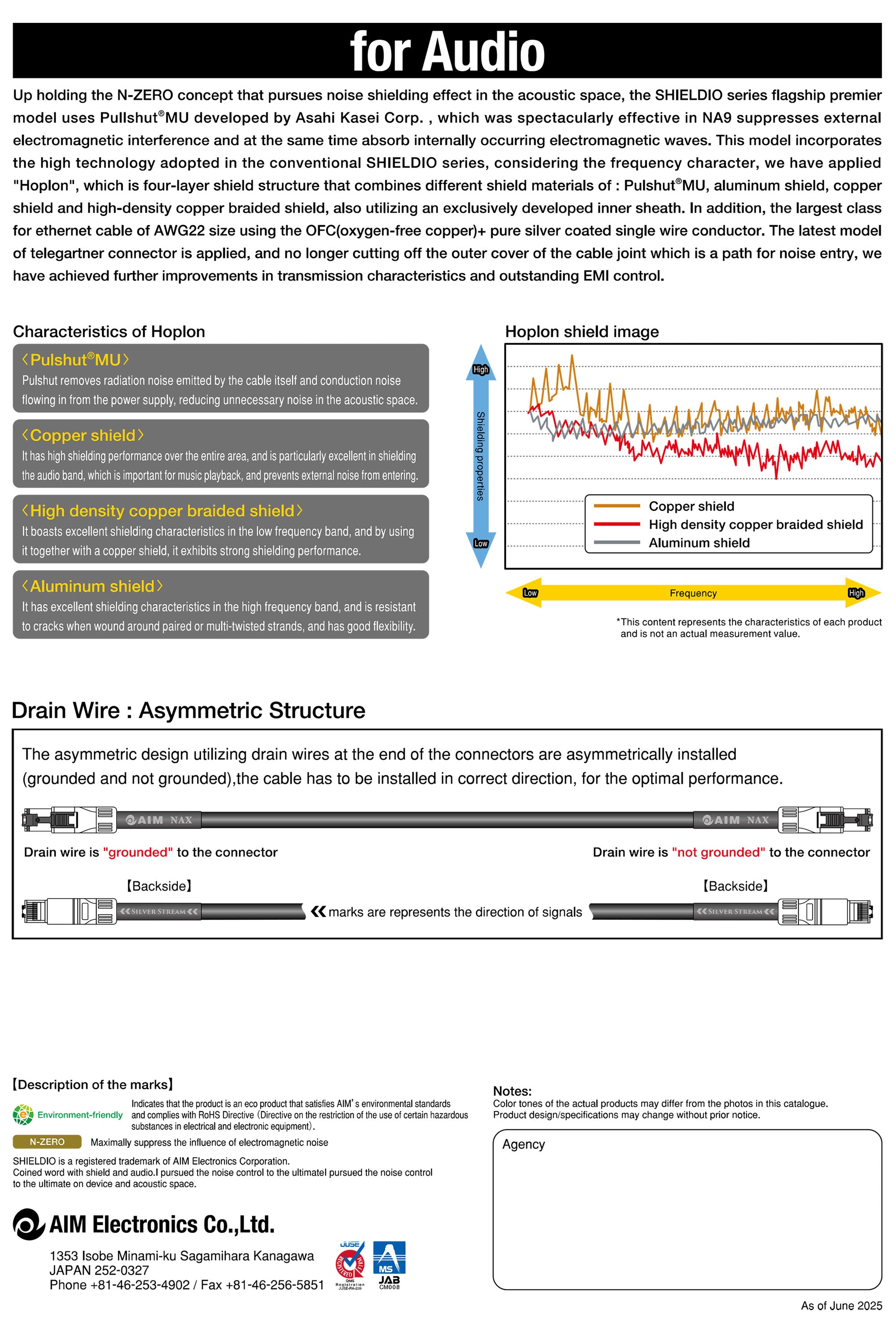

- The newly developed "Hoplon" shielding structure, combining four different shielding layers, reduces interference during signal transmission and significantly improves noise immunity.

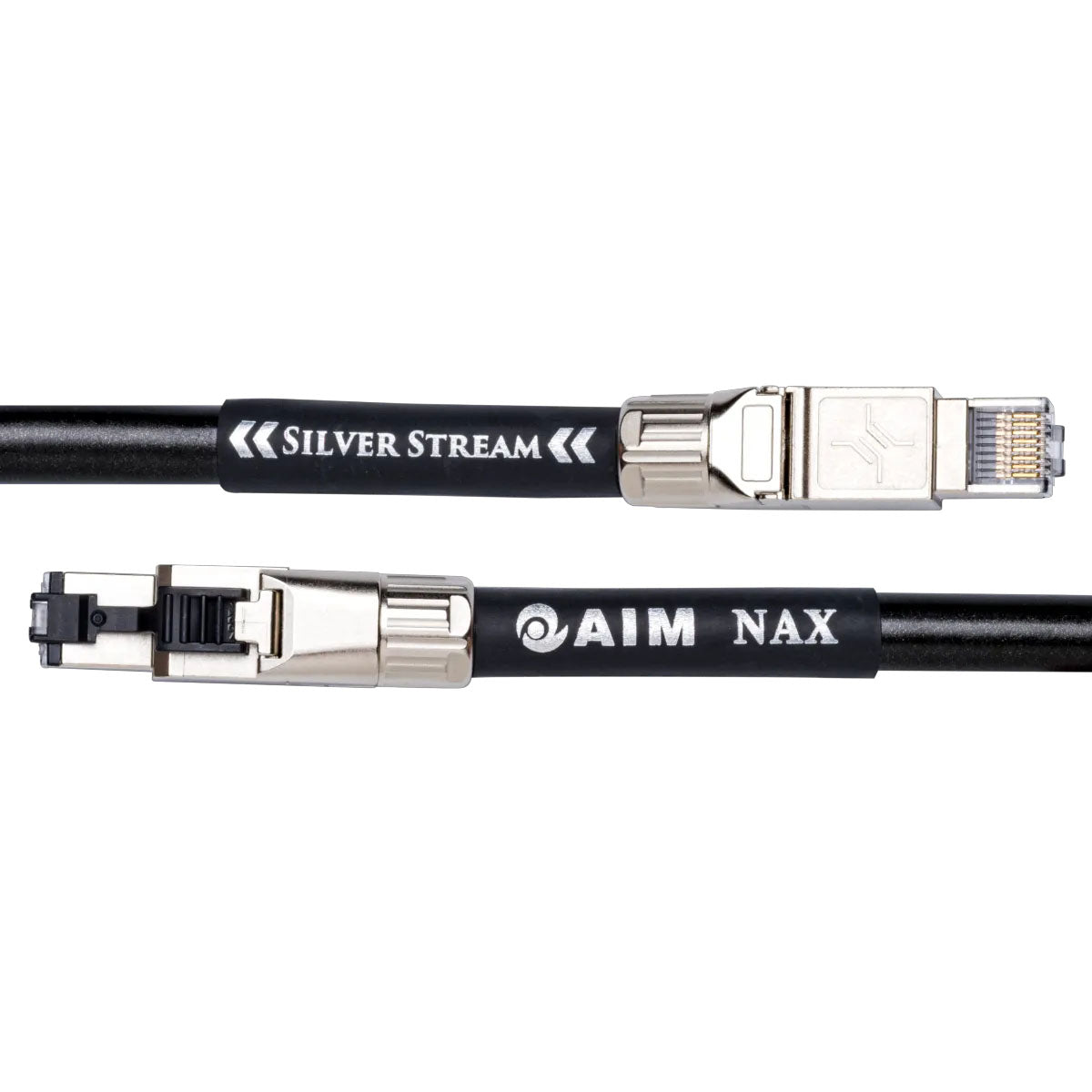

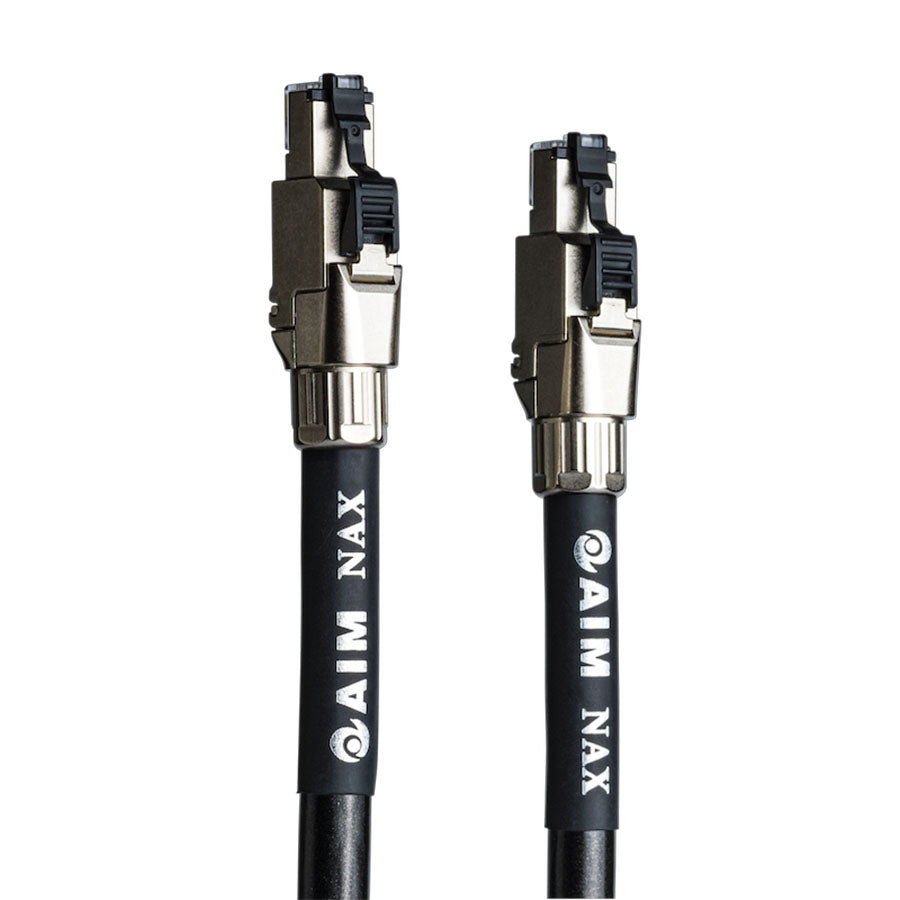

- Enhanced durability by using a more robust 360° shielded German-made Telegärtner MFP8 RJ45 connector.
- Air 2 insulation technology: Based on the concept of achieving near-air insulation performance, it adopts "Air 2" foamed insulator to effectively reduce dielectric constant and loss factor, achieving the highest level of transmission performance.
- The sheath, made with the latest TOMY ferrite magnetic material, absorbs electromagnetic waves that affect signal transmission.
- High-quality single-strand oxygen-free copper wire core with AWG 22 gauge ensures high-speed transmission up to 40Gbps.
- Each twisted pair core is coated with PULSHUT® MU, a special material developed by Asahi Kasei Corporation, to absorb electromagnetic waves and ensure that the tone of the conductor is not interfered with by external noise.

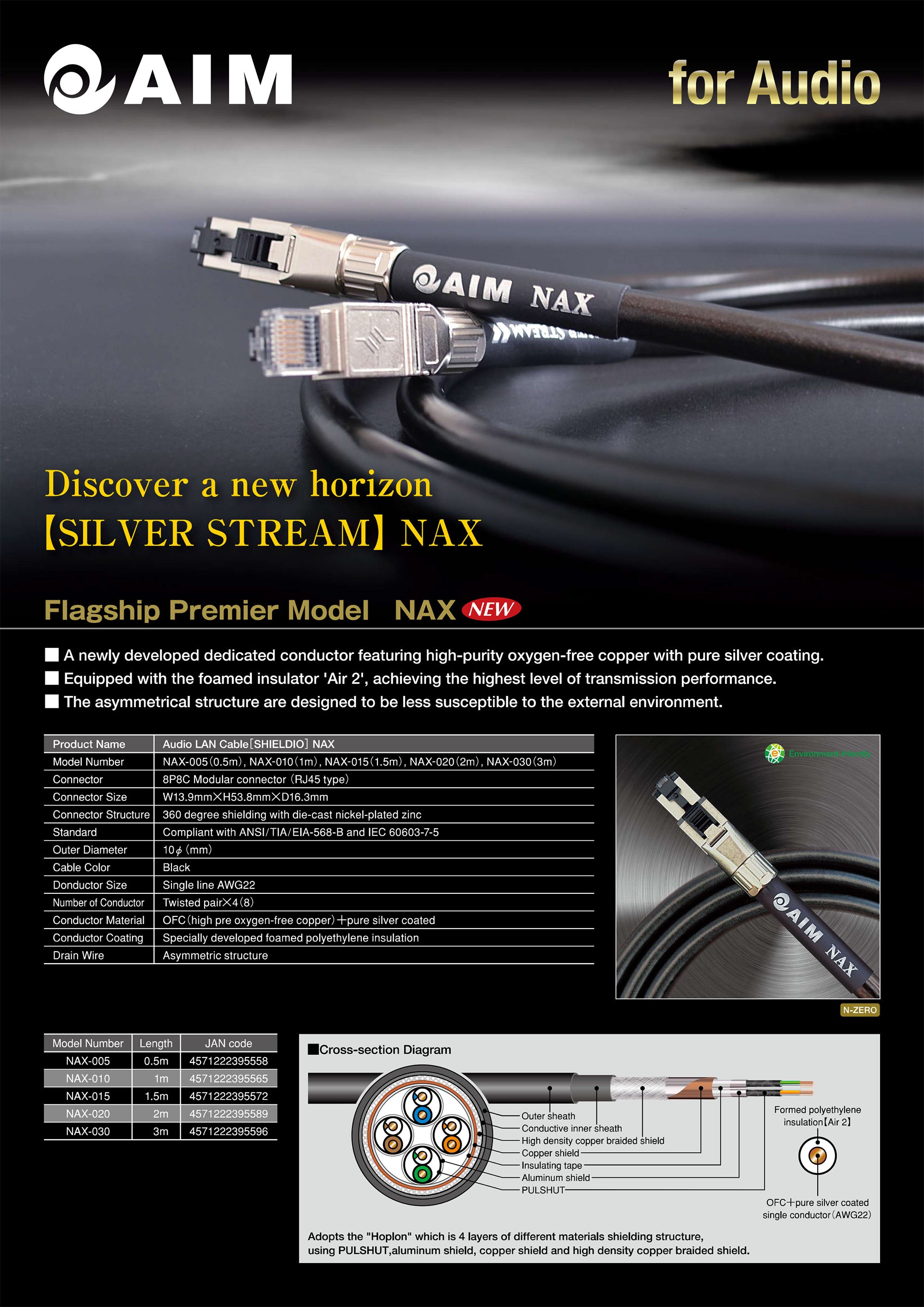

| AIM NAX Product Specifications: | |
|---|---|
| Connector: | 8P8C Modular Connector (RJ45) |
| Connector size: | W13.9mm X H53.8mm X D16.3mm |
| Connector structure: | 360° shielded all-hard polycarbonate shell and die-cast zinc plated with nickel |
| standard: | Compliant with ANSI/TIA/EIA-568-B and IEC 60603-7-5 |
| Cable outer diameter: | 10Φ (mm) |
| Cable color: | black |
| Conductor dimensions: | Single-line AWG22 |
| Number of wires: | Twisted pair cable × 4 (8 strands) |
| Conductor material: | OFC (high-purity mono-branch oxygen-free copper) + Japanese-made pure silver plating |
| Conductor sheath: | PULSHUT® MU |
| Shielding layer: | TOMY Ferrite Magnetic Material Sheath |
| Conductor coating: | A new foam layer sheath developed with patents |
