DALI OBERON 1 SPECS

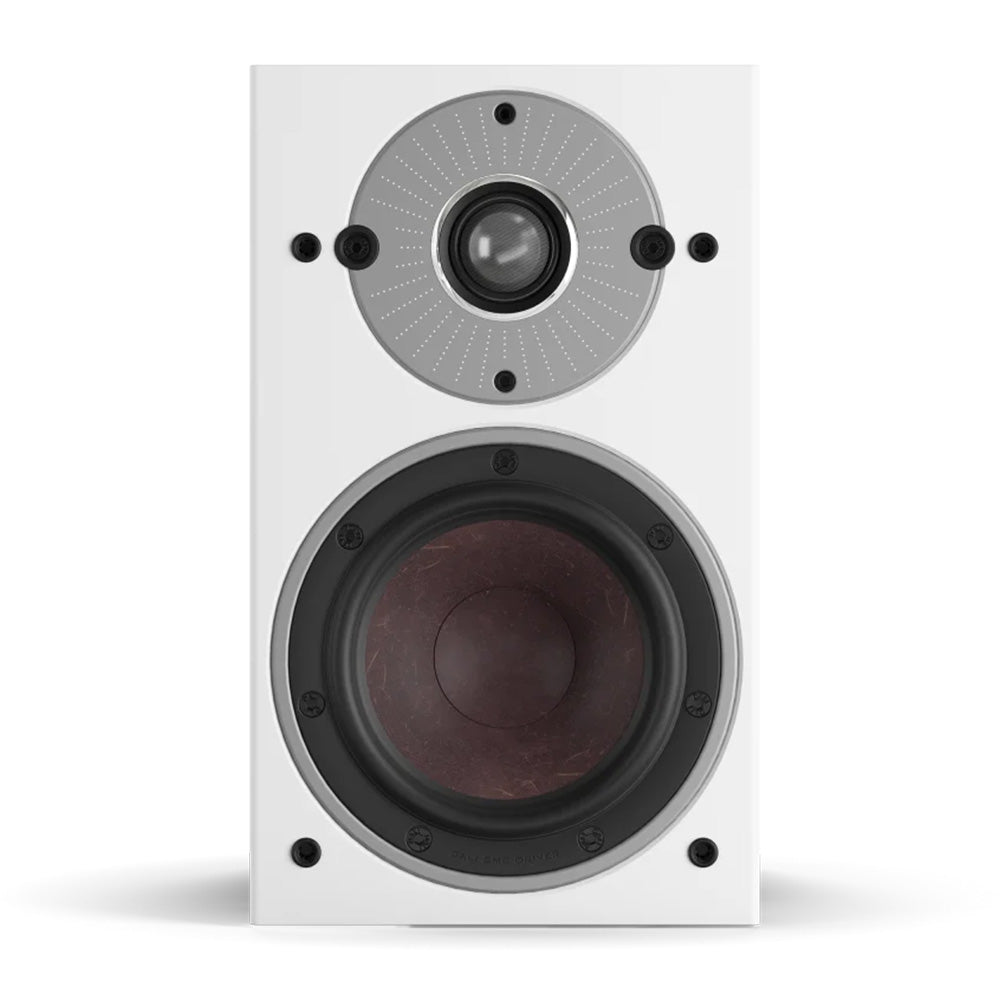

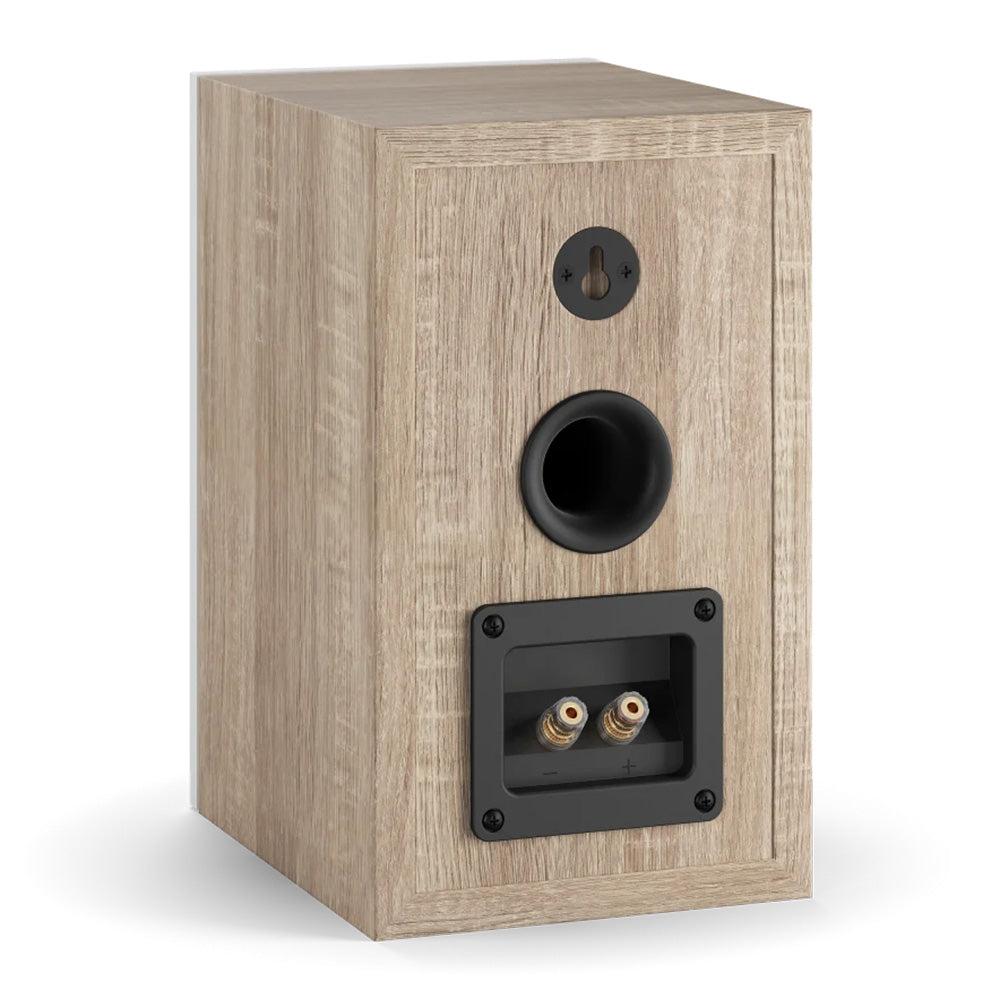

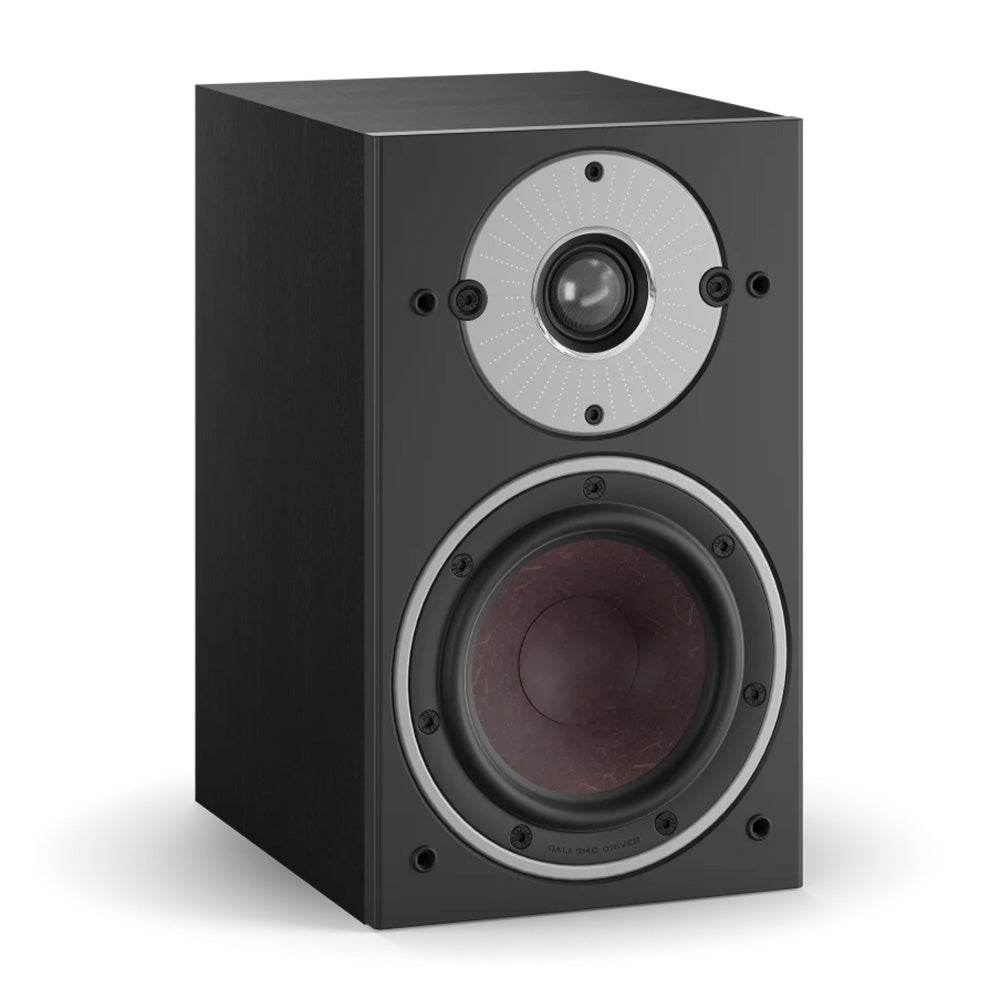

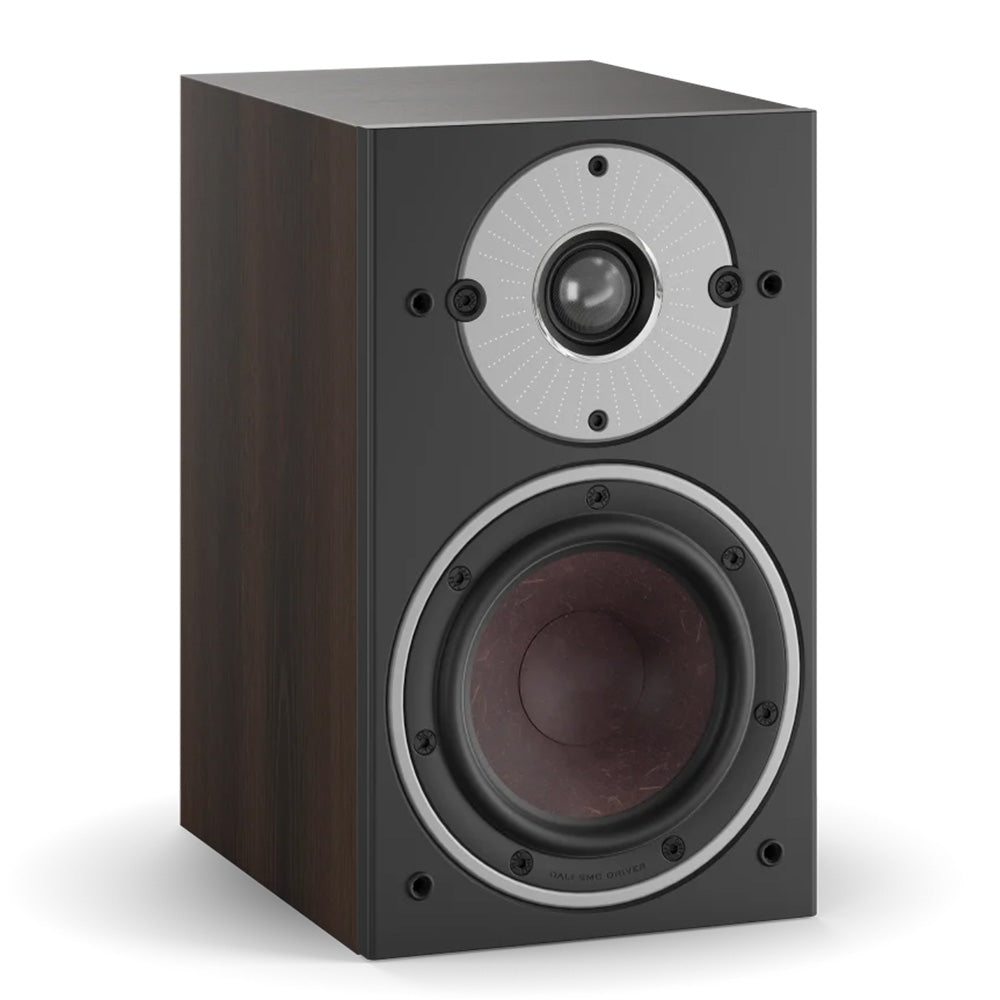

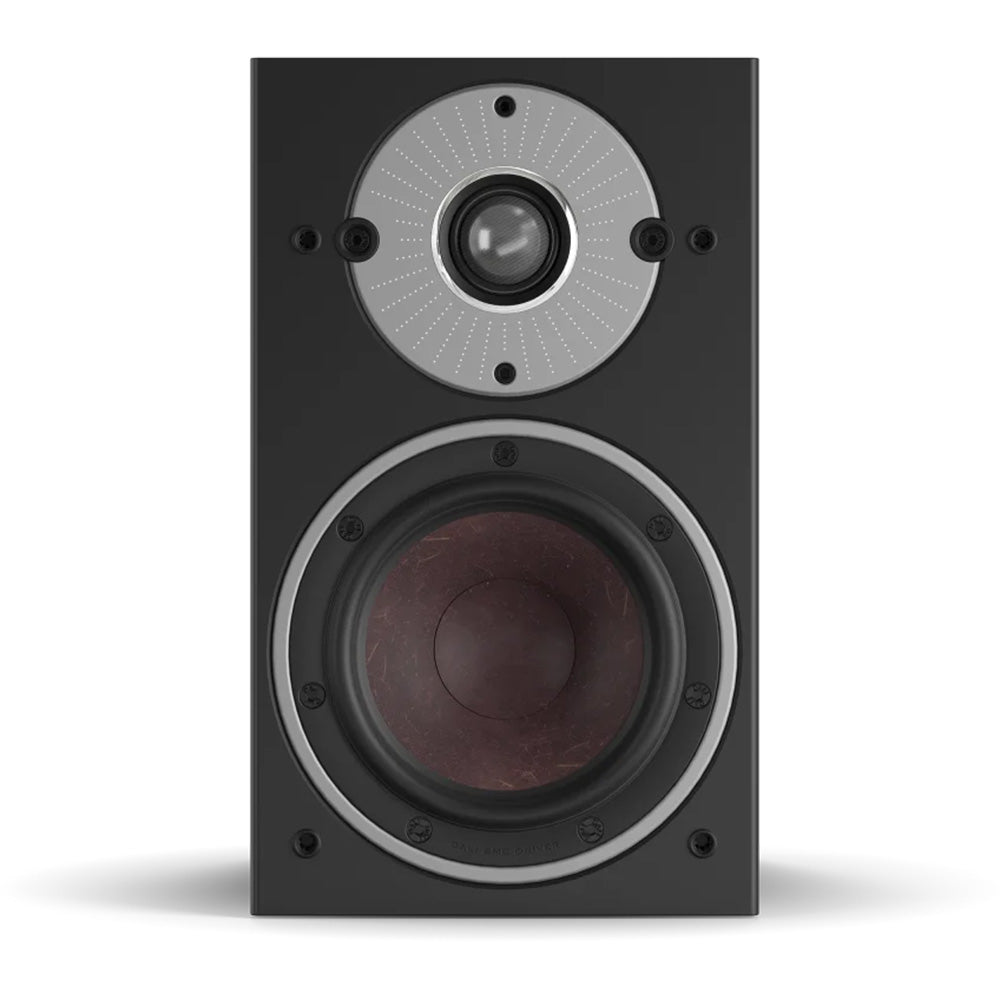

DALI OBERON 1 is the smallest product in the OBERON series. It adopts a two-way design and is a completely new design from the inside out. Because of its small size, it can also be used as a wall-mounted speaker. It is a bookshelf speaker design suitable for small rooms.
DALI OBERON is the first entry-level series to use DALI SMC (Soft Magnetic Compound) patented technology. SMC can significantly reduce non-linear magnet distortion. OBERON uses a newly designed large-size 29mm extremely lightweight tweeter and wood with good diffusion Fiber mid-bass driver and, of course, beautiful Danish craftsmanship cabinet design. For the 7″ woofer used in OBERON 3 and OBERON 7, its diaphragm is more than 15% larger than the 6.5″ commonly used on the market. The voice coil only needs less operation to produce a larger sound. Sound pressure and energy, the dynamics of music are naturally greater. Very soft and elastic rubber is used around the single diaphragm, allowing it to move freely with minimal damping. The magnet drive system also makes it easier to control the diaphragm. OBERON's The voice coil has 4 layers. In order to reduce its weight so as not to affect the mid-frequency regeneration, DALI uses very light copper-clad aluminum wire to make the voice coil. Its conduction/weight ratio is 205% better than copper. Bass control and minute detail reproduction have all been greatly improved.
OBERON has 7 models in total, including OBERON 1 and OBERON 3 bookshelf speakers, OBERON 5, OBERON 7 and OBERON 9 floor-standing speakers, VOKAL center speaker, and ON-WALL thin wall-mounted speakers. It is quite complete and can be used in various occasions.
Product series | OBERON |
---|---|
Frequency Range (+/-3 dB) [Hz] | 47-26,000 |
Sensitivity (2,83 V/1 m) [dB] | 87 |
Nominal Impedance [ohms] | 6 |
Maximum SPL [dB] | 108 |
Recommended Amplifier Power [W] | 25-150 |
Crossover Frequency [Hz] | 2,400 |
Crossover Principle | 2-way |
High frequency driver, Quantity | 1 x 29mm |
High frequency driver, Diaphragm type | Soft Textile Dome |
Low frequency driver, Quantity | 1 x 7" |
Low frequency driver, Diaphragm type | Wood Fiber Cone |
Enclosure type | Bass Reflex |
Bass Reflex Tuning Frequency [Hz] | 49 |
Connection Input | Single Wire |
Recommended Placement | Shelf or stand |
Recommended Distance From Wall [cm] | 5-50 |
Dimensions With Base (HxWxD) [mm] | 350 x 200 x 315 |
Accessories Included | Manual Rubber Feet Front Grille |
Weight [kg] | 6.3 |
