Description

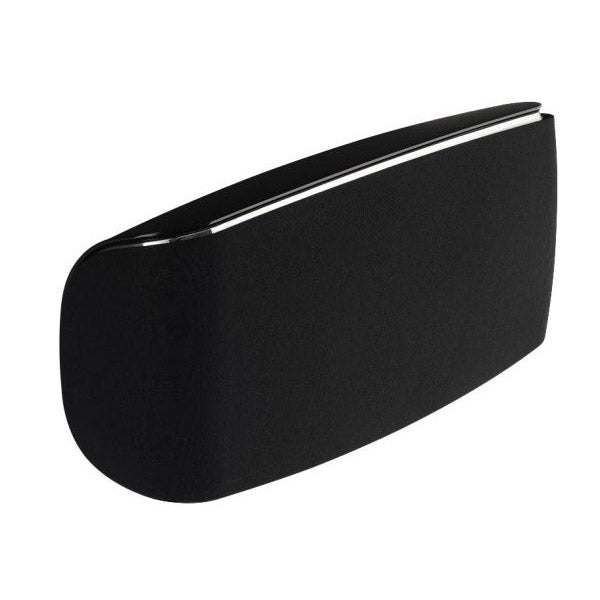

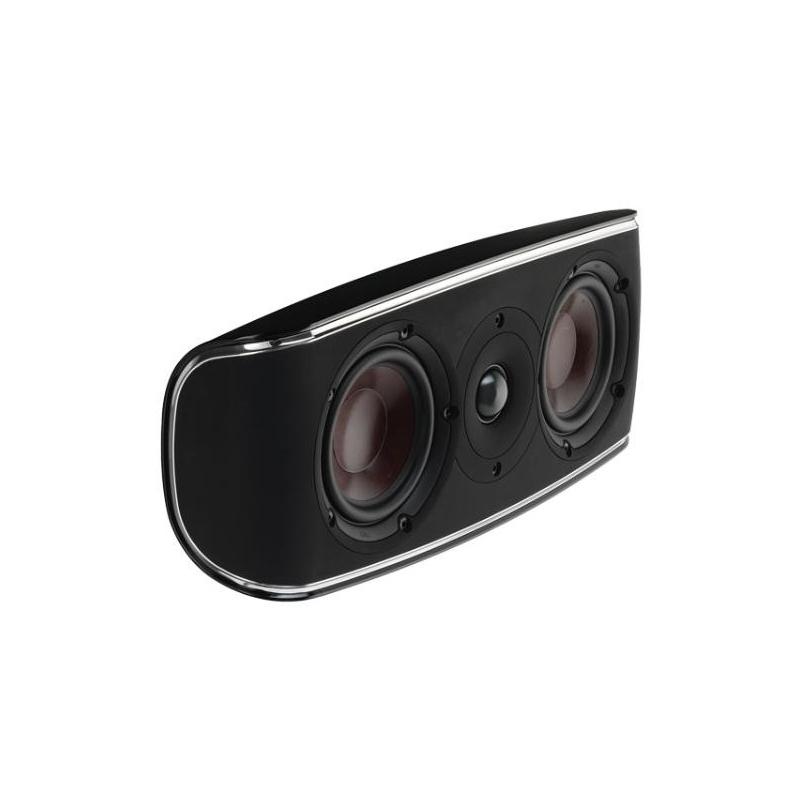

Adhering to the advantages of the two well-known series of MENTOR and IKON, the DALI FAZON LCR speaker has deservedly become an audiophile-level speaker product with its elegant shape, sophisticated materials, first-class playback unit and outstanding system design. Whether it is paired with an immersive sound system or a multi-channel sound system, it can present perfect sound quality. At the same time, it also provides two installation methods: wall-mounted and floor-standing.
DALI uses aluminum alloy die-casting technology and good internal support structure to create a revolutionary asymmetrical cabinet. This simple and effective structure minimizes the acoustic and mechanical resonance of the cabinet.
The crossover is made of high-quality audiophile-grade components and installed on the back side of the FAZON LCR quick-installation port to shorten the signal path and thereby reduce signal loss.
FAZON LCR integrates a unique quick-installation wall-mounting device, making annoying speaker cables "invisible" and giving you a clean and tidy home environment. The speaker can be flexibly placed vertically or horizontally, and used as a left-right or center-mounted speaker. This is where the name LCR (left center right) comes from.
Like FAZON F5, LCR also adopts a "double-layer front baffle" design to further improve sound quality output performance.
This multifunctional speaker perfectly integrates into modern life with its heaven-like sound quality and outstanding appearance.
| Frequency response [+/- 3] dB [Hz] | 78 – 25,000 |
| Sensitivity [2.83V/1m] [dB] | 89 |
| Indicated impedance [Ω] | 6 |
| Maximum sound pressure [dB] | 107 |
| It is recommended to increase the machine power [Watts] | 15 – 120 |
| Crossover point [Hz] | 3,000 |
| Tweeter | 1 28mm silk soft hemisphere |
| Midrange unit | – |
| woofer | 2 x 4.5” wood fiber diaphragms |
| Recommended distance from back wall [cm] | – |
| Dimensions (height x width x depth) [mm] | 385 x 157 x 117 |
| Weight/including foot base [Kg] | 3.5 |
