Description

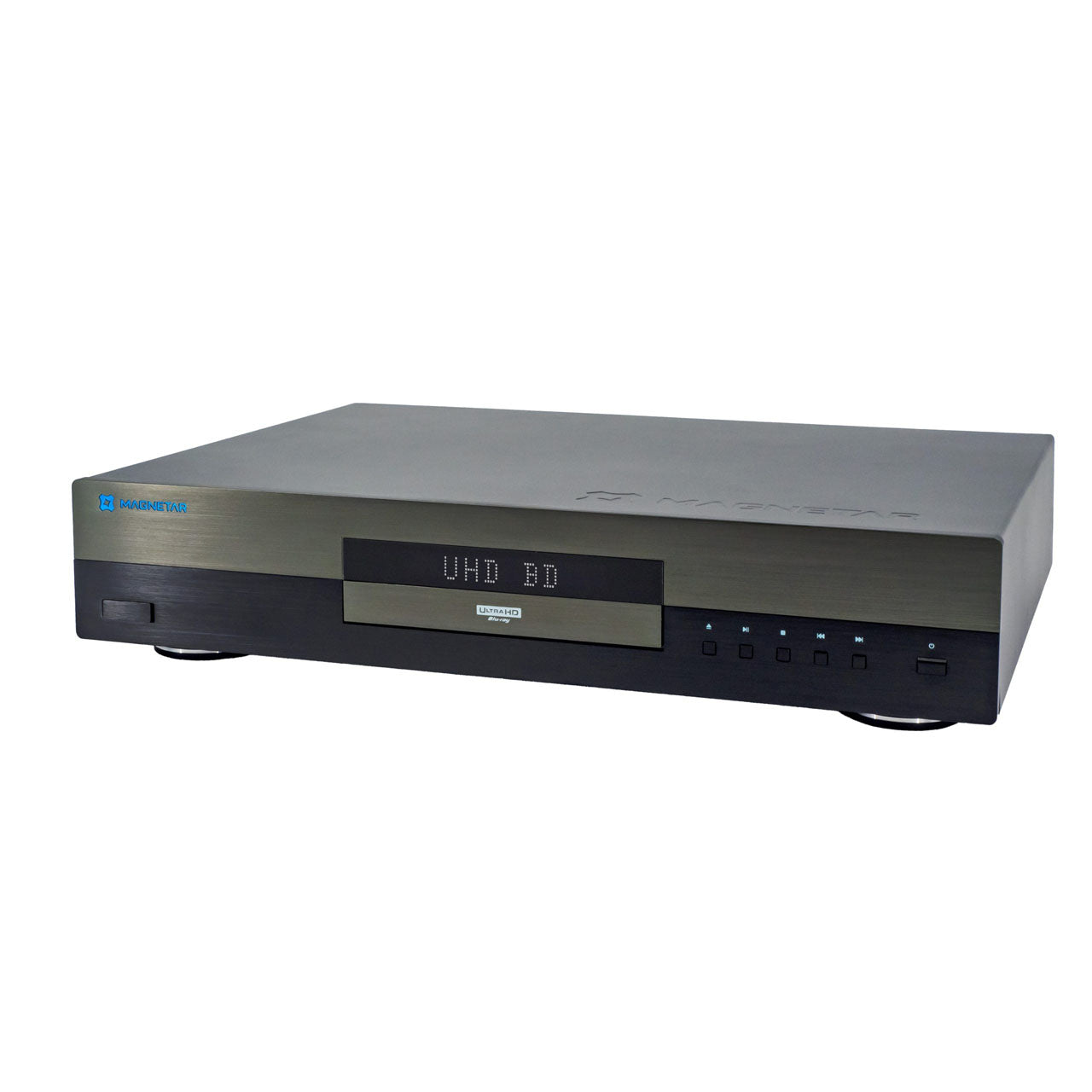

MAGNETAR UDP800 High-End 4K Blu-ray/SACD Standard/Enhanced Edition
-
All Magnetar UDP800s sold by our company are genuine Hong Kong products.
-
This product comes with a 1-year warranty and free delivery service (Hong Kong and Macau only).
- One free 8K HDMI 2.1 cable is included during the promotion period (while supplies last).
What is MAGNETAR?
MAGNETAR's engineering team is entirely comprised of OPPO personnel . As an audio-visual brand that pursues excellence and innovation, MAGNETAR boasts a strong engineering team. Leveraging over a decade of experience and expertise in the professional R&D and OEM manufacturing of high-end audio-visual products, MAGNETAR is dedicated to developing its own brand of high-end players and audiophile-grade audio-visual products.
Strong support capabilities
The MAGNETAR UDP800 is a professional-grade quad-core MT8581 chip that fully supports UHD 4K Blu-ray ultra-high-definition picture quality, Dolby Vision, and HDR 10+ high dynamic range imaging standards. Combined with advanced image decoding and processing technologies, it comprehensively supports 4K UHD BD/BD/DVD/SACD/CD formats, USB and network streaming video playback, and fully supports high-resolution encoding formats such as H.265 (HEVC), H.264 (AVC), VP9 4K, and Hi10P. Its upscaling pixel enhancement function can convert and enlarge low-resolution video to up to 50/60Hz 4K (3,840 x 2,160) resolution output, enabling precise conversion from HDR to SDR, and supporting BT.2020/BT.709/BT.601 color space conversion and output.
The menu offers precise adjustments to image characteristics such as brightness, contrast, hue, saturation, and sharpness, which can be combined with professional image calibration to compensate for the shortcomings of other devices, or customized to suit one's own taste.
Supports 4K UHD, SACD, and DVD-A.
To cater to the needs of two-channel audiophiles, the MAGNETAR UDP800 is equipped with an independent two-channel D/A decoder for XLR balanced and RCA unbalanced outputs. The HDMI output supports source output of Dolby Atmos and DTS:X audio formats. With the dedicated HDMI audio output terminal, true audio-visual separation is achieved.
In addition to supporting SACD/DVD-Audio/CD discs, the UDP800 also supports playback of media files from external USB and networks. It can decode DSD64/128, multi-channel DSD64, and PCM formats up to 192kHz/24-bit. It also supports various high-resolution lossless audio formats such as DSD, AIFF, ALAC, FLAC, WAV, and APE.
Custom high-power power supply

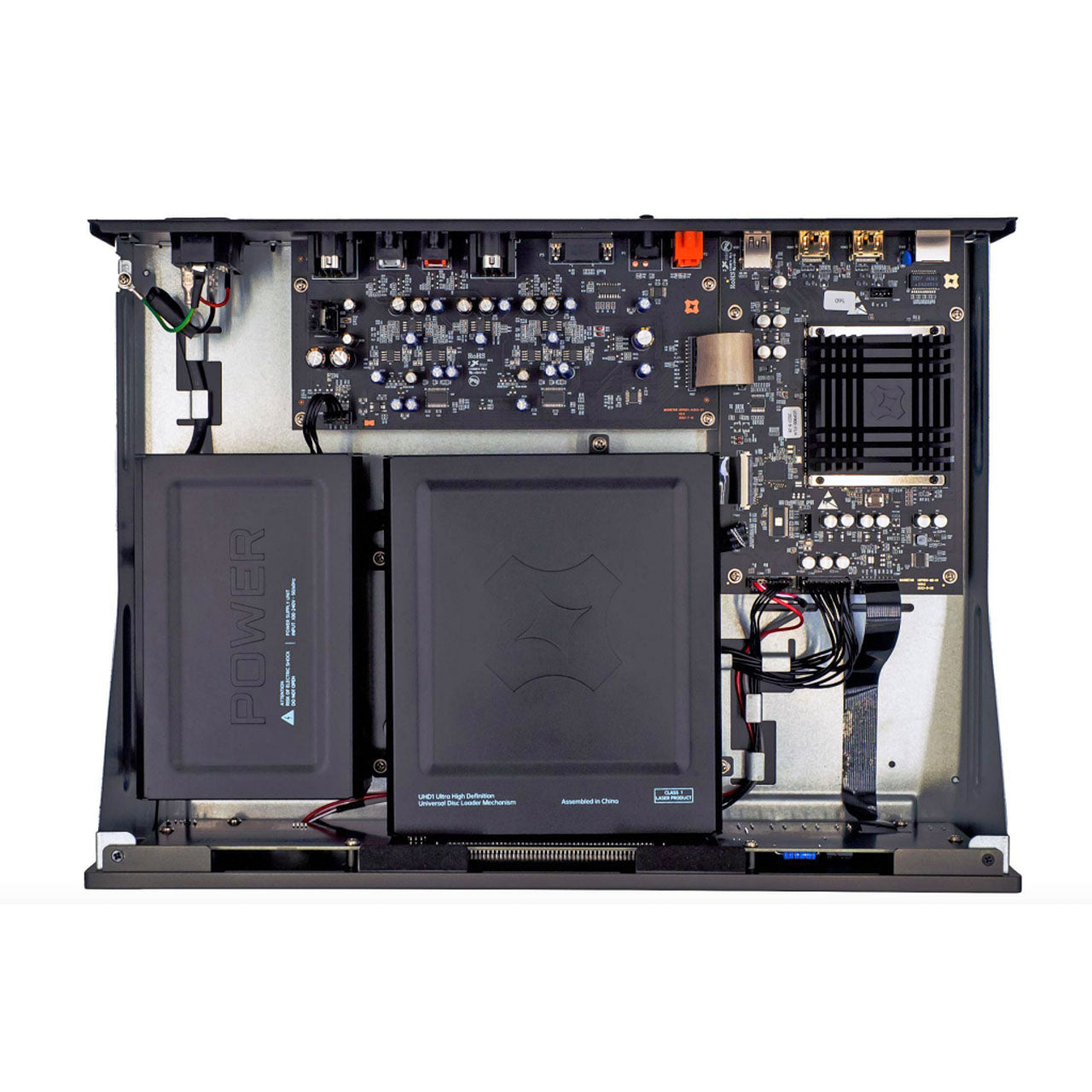

The UDP800 uses a custom 60W high-power, low-noise transformer, a two-stage input filtering design, and extensive use of Japanese Rubycon electrolytic capacitors. The power supply components also have independent metal shielding.
MAGNETAR UDP800 Product Features:
- Supports UHD 4K Blu-ray ultra-high definition discs, Dolby Vision, and HDR 10+ high dynamic range standards.
- Supports SACD/DVD-Audio/CD discs, as well as external USB and network media files.
- With a dedicated HDMI audio output terminal, true audio-visual separation output is achieved.
- The double-layer chassis enhances the structure and stability, and the fuselage weighs up to 8kg.
- Custom-designed high-power, low-noise transformers are used to handle high transient response, and the power supply components also have independent metal shielding.
- Equipped with a professional-grade quad-core MT8581 system-on-a-chip, featuring advanced image decoding and processing technologies.
- Built-in 4K Upscaling pixel enhancement function
- Built-in external subtitle function for DVD playback* Enabled after firmware update
- Two independent Burr-Brown PCM1795 DAC chips are used for two-channel D/A decoding.
- Equipped with high-fidelity Muses 8920 operational amplifier OP-AMP
- Equipped with XLR gold-plated balance terminals and RCA gold-plated terminals
- Pure Audio mode designed specifically for listening to music.
- It can share video, music, and photo files via DLNA servers, SMB, and NFS within the network.
MAGNETAR UDP800 Specifications:
- Supported discs: UHD Blu-ray, Blu-ray, Blu-ray 3D, DVD-Video, DVD-Audio, AVCHD-SACD, CD, Kodak Picture CD, CD-R/RW, DVD±R/RW, DVD±R DL, BD-R/RE
- HDMI outputs: 2 sets (1 set of independent audio output)
- Audio outputs: XLR (balanced), RCA, digital coaxial, optical
- Voltage: AC 100-240V ~, 50/60Hz
- Dimensions: 430 x 300 x 90 mm
- Weight: 8 kg
