Description
Parasound JC5 power amplifier
SPECIFICATIONS
- 400 watts x 2 @ 8 Ω RMS, both channels driven
- 600 watts x 2 @ 4 Ω RMS, both channels driven
- 1200 watts x 1@ 8 Ω, in bridged mode
- Circuitry designed by legendary John Curl
- Ultra-high bias Class A/AB operation
- 12 watts per channel of pure Class A power
- 90 amperes peak current per channel
- Stable with speaker impedance dips to 1.5 Ω
- Balanced inputs with discrete circuits

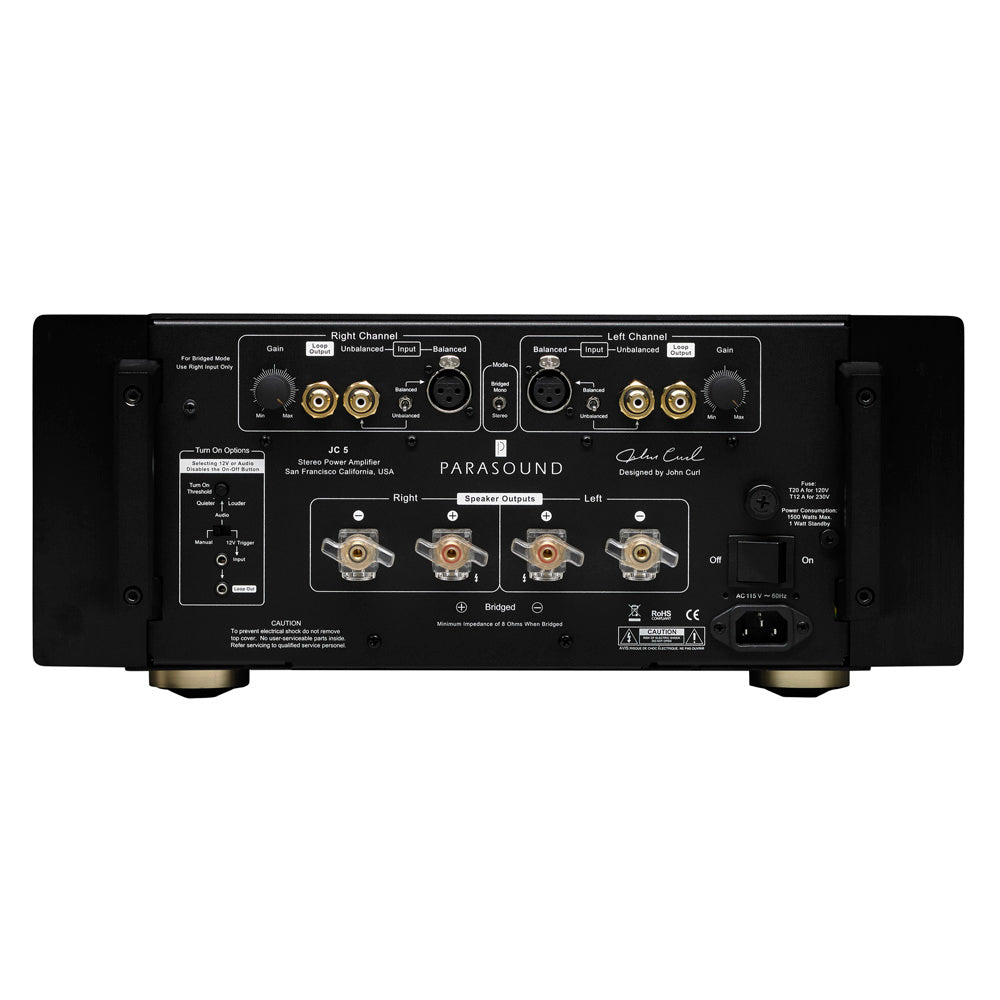

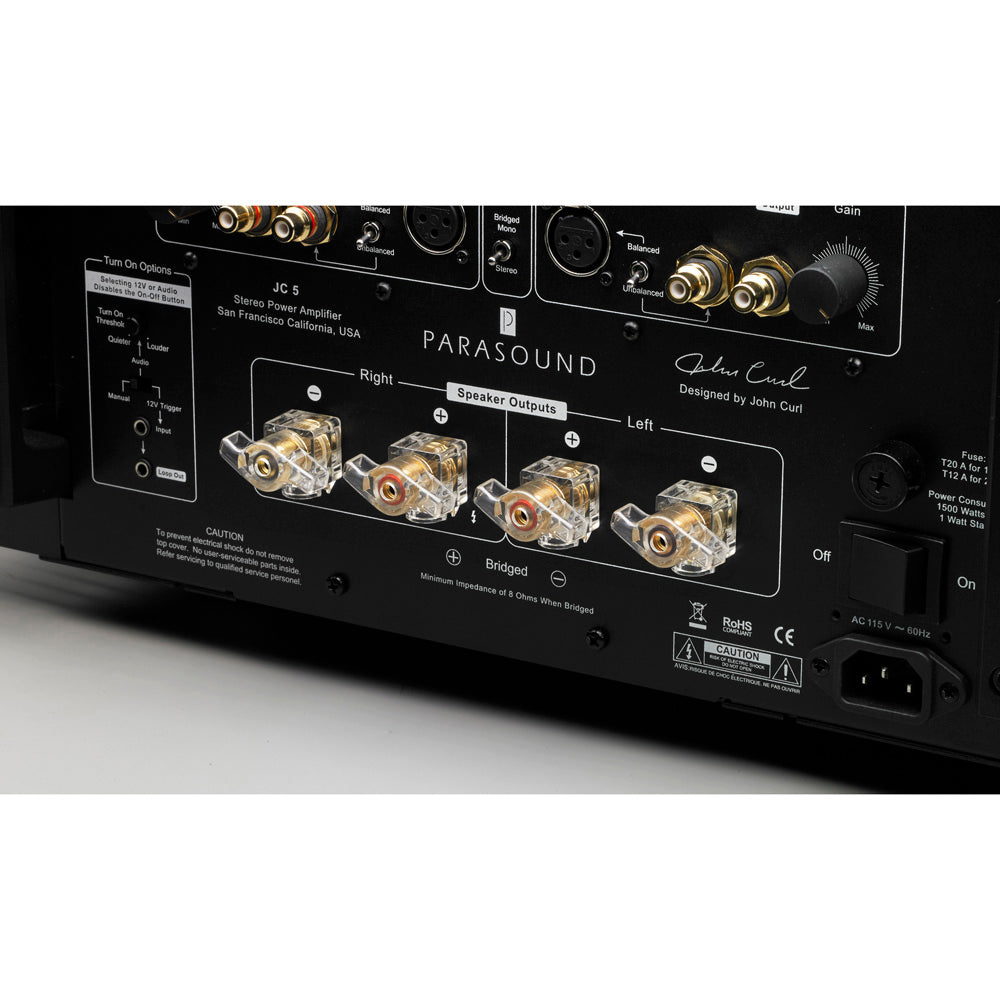

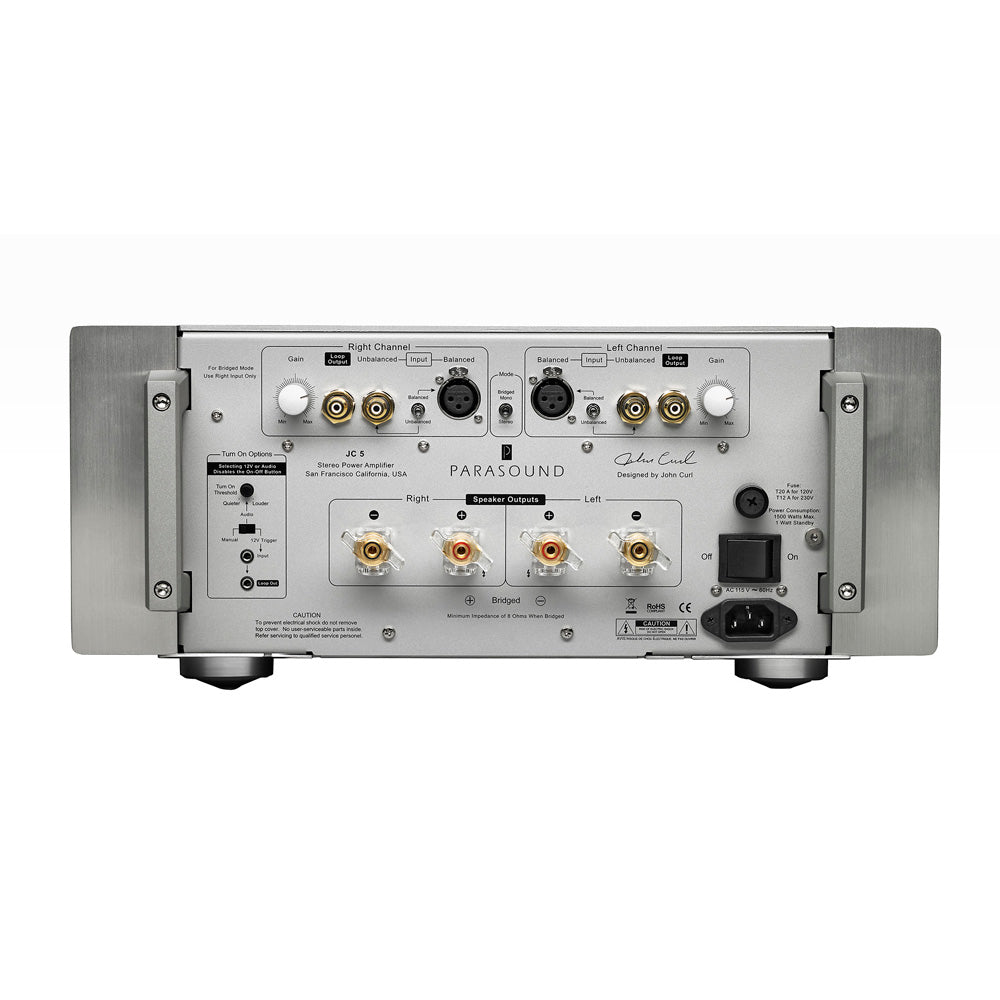

- CHK Infinium, custom 5-way speaker binding posts
- Neutrik locking XLR input connectors
- Vampire gold-plated RCA input & loop output jacks
- Direct-coupled signal path, no capacitors or inductors
- DC Servo and relay protection circuits
- AC turn-on inrush surge protection with relay bypass
- Dual-mono input stages with ±110 volt DC rails
- JFET input stage, MOSFET driver stage

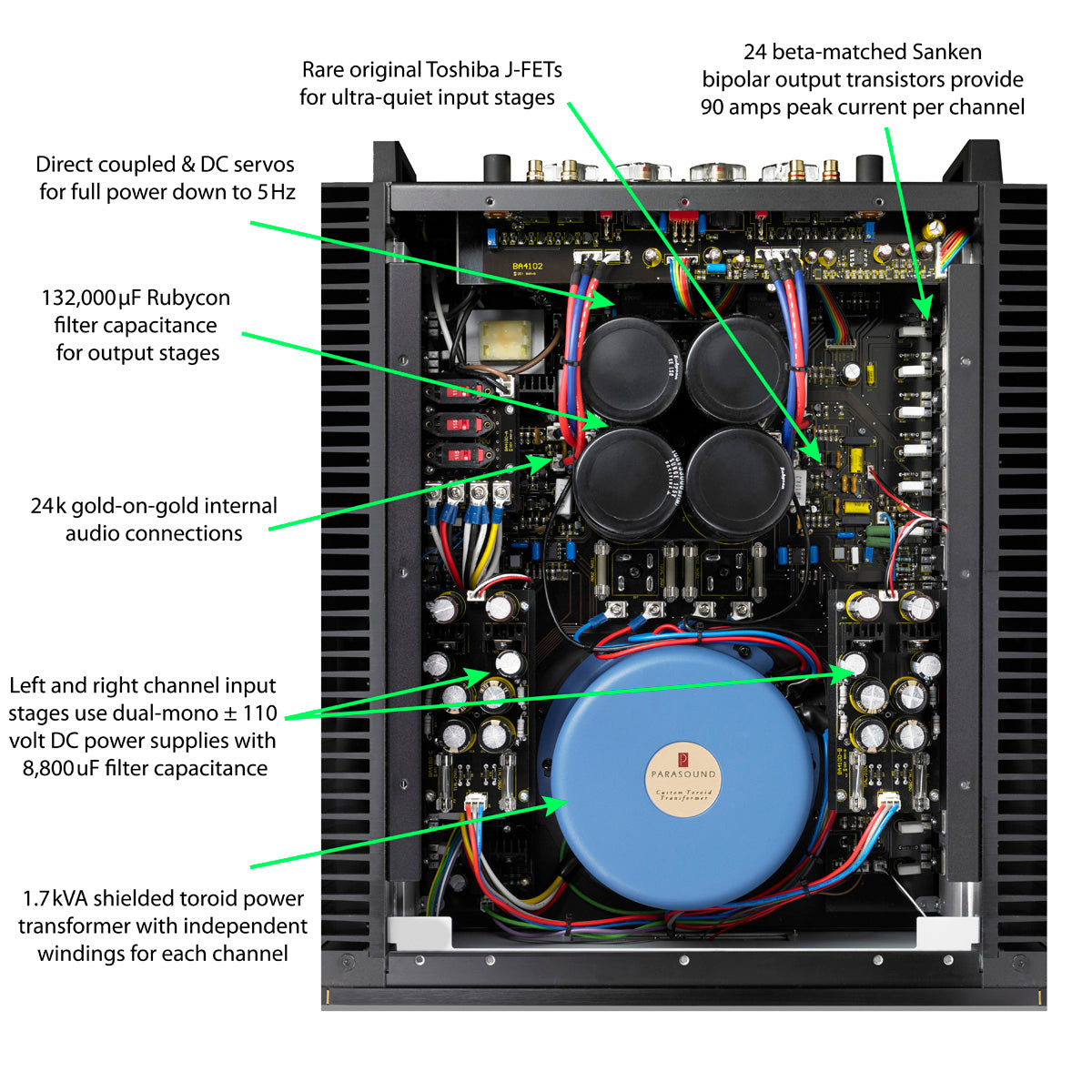

- 24 beta-matched 15 ampere, 60 MHz bipolar output transistors
- 1.7 kVA shielded toroid power transformer with independent windings for each channel
- Independent power supplies for left & right channel input stages, driver stages, output stages
- 8,880 µF Nichicon Gold Tune filter capacitors for input stages
- 132,000 µF Rubycon filter capacitors for output stages
- Full power is rated all the way down to 5Hz for unrestricted low-end bass
- Harris hyper-fast soft-recovery bridge diode rectifiers
- Automatic turn-on by 12 V trigger or audio sensing
- 4 rack space chassis with rear carry handles
- Rack mount hardware is included

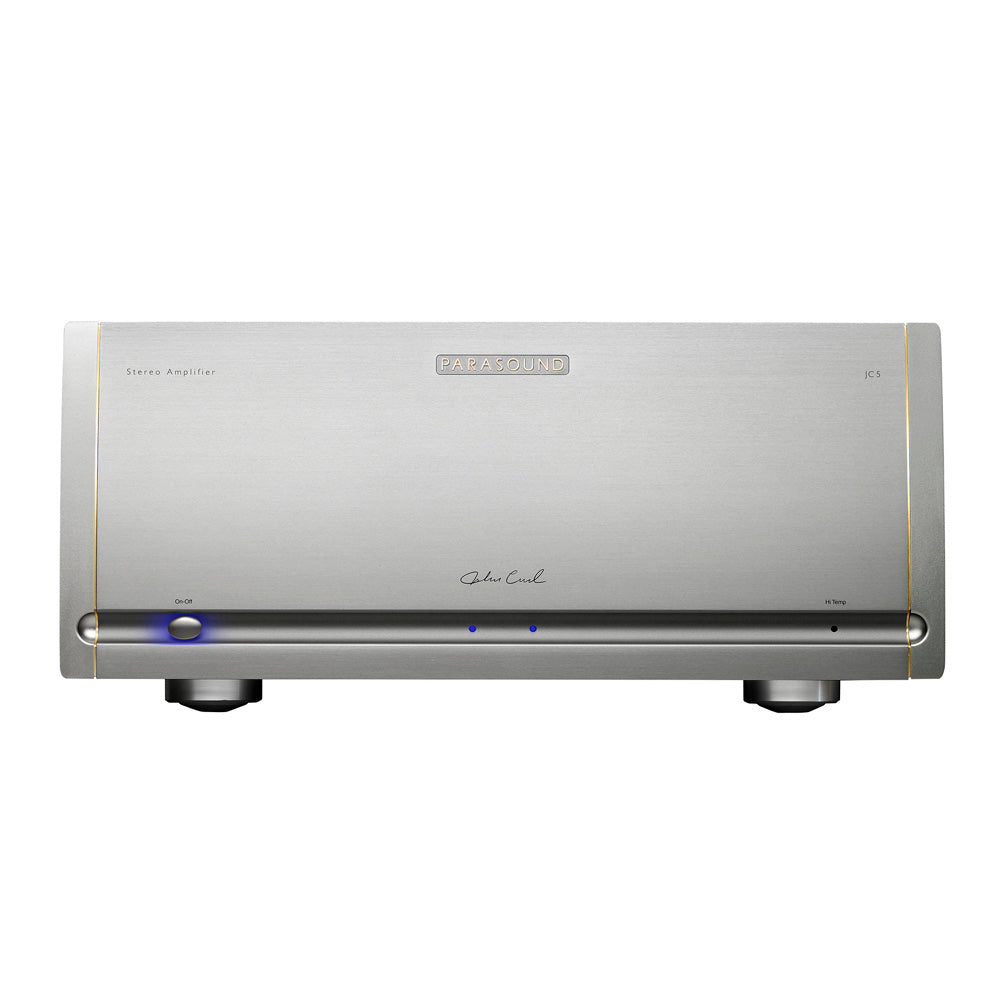

- Available in silver or black
