Description
- All ATC licensed products sold by our company are made in the UK
- This product comes with 5-year warranty and free shipping (only in Hong Kong)

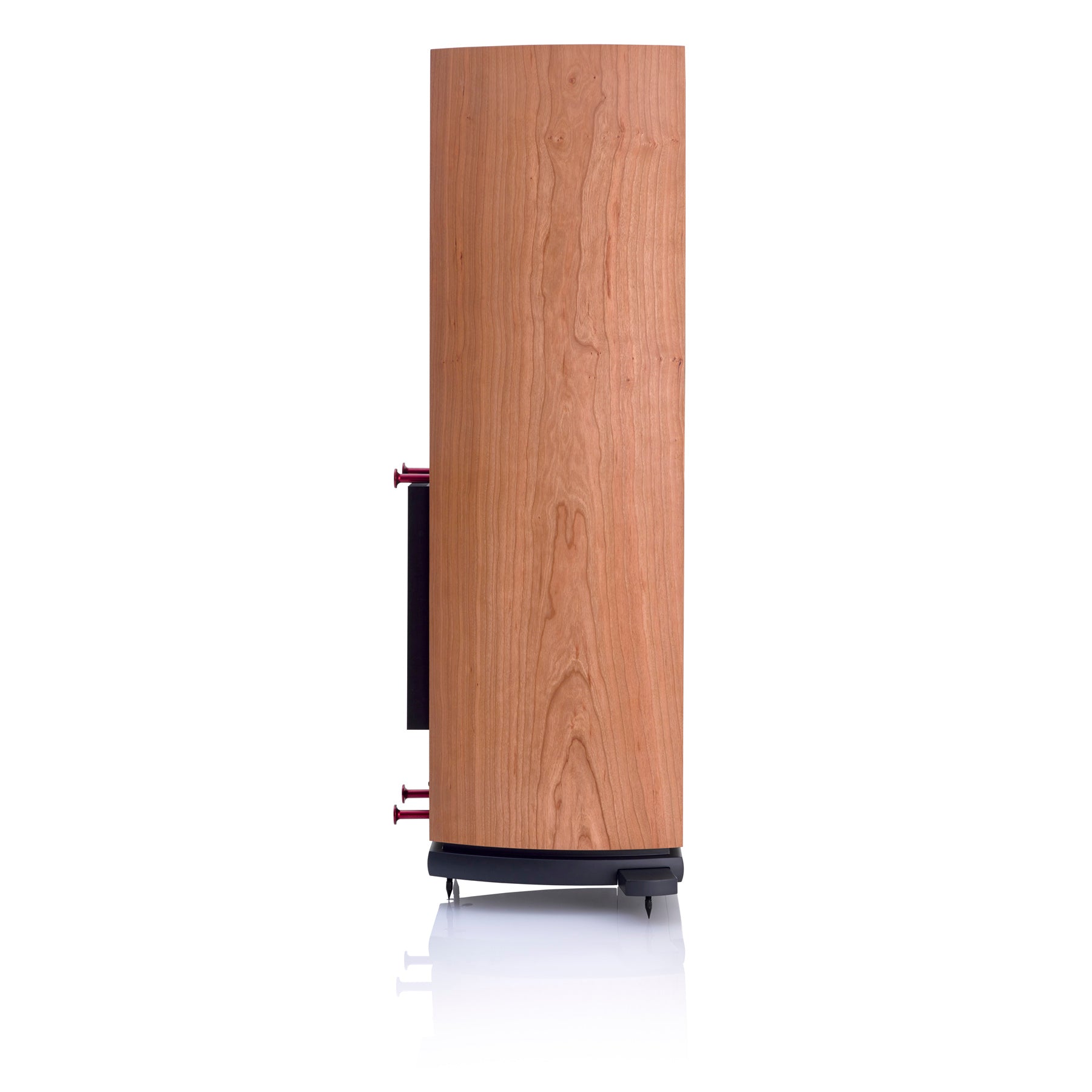

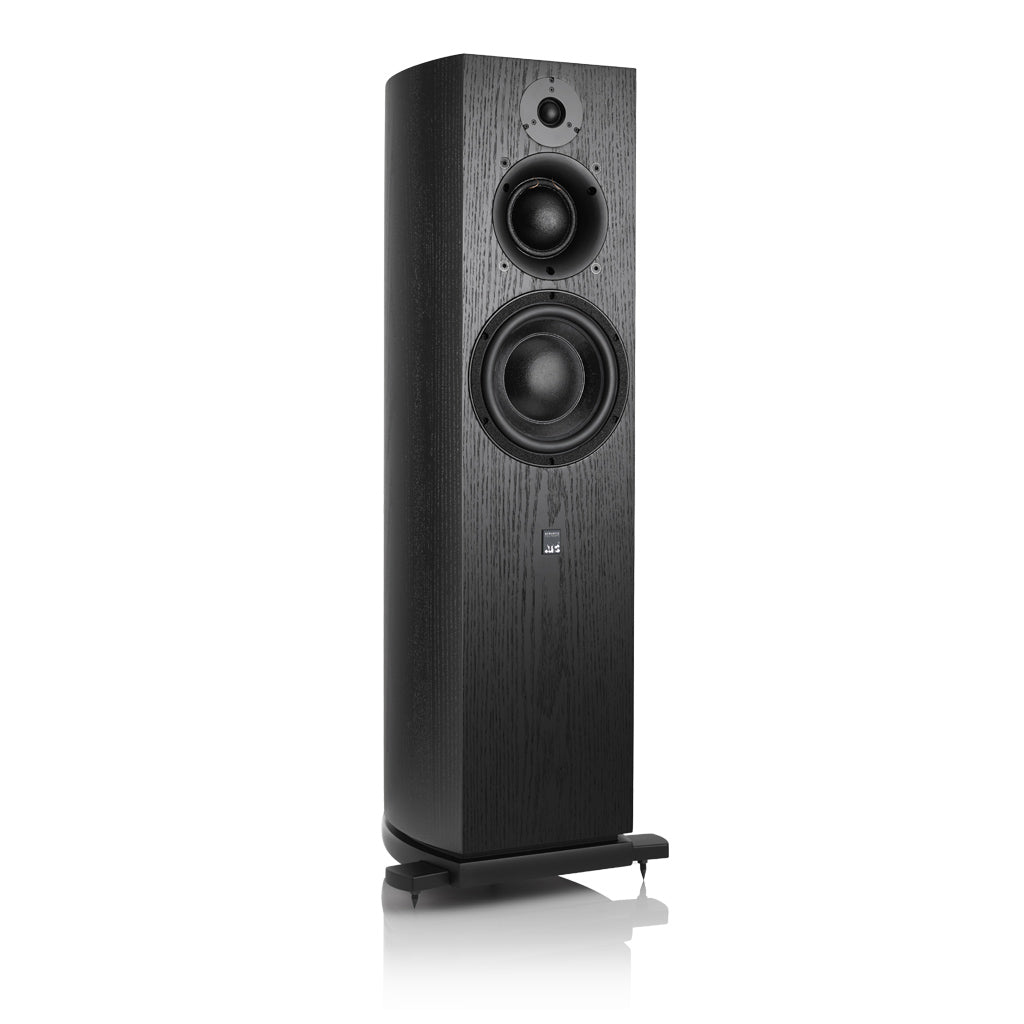

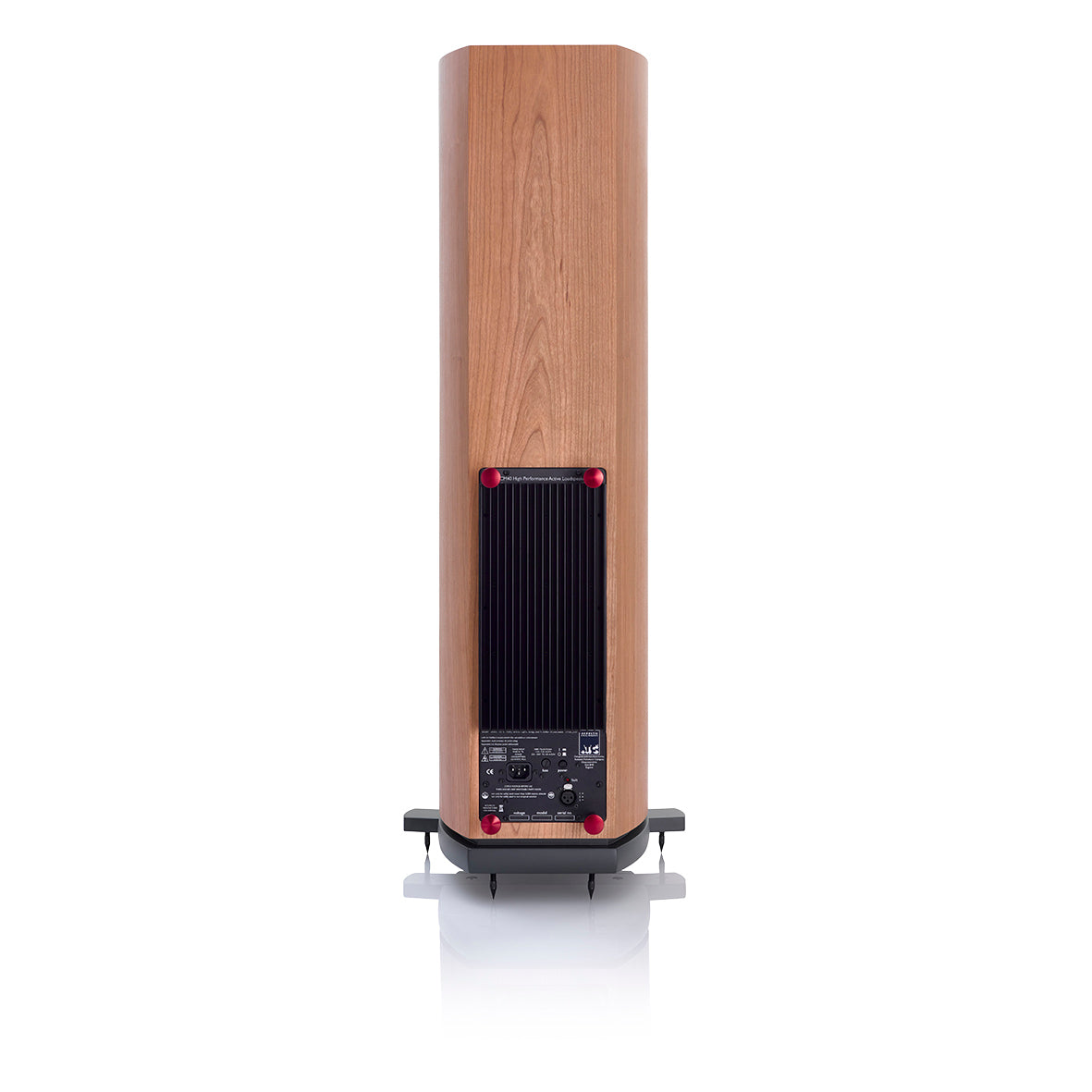

British auditory grade speaker-ATC new version SCM40A
ATC SCM40A active speakerSpec:
Drivers: HF ATC 25mm dual suspension Tweeter, Mid 75mm ATC Soft Dome, LF ATC 164mm SC
Matched Response: ±0.5dB
Frequency Response (-6dB): 48Hz-22kHz
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Max SPL: 112dB
Crossover Frequencies: 380Hz & 3.5kHz
Input Connector: Female XLR
Input sensitivity : 1V
Filters : 4 th Order critically damped with phase compensation.
Overload Protection: Active FET momentary gain reduction.
Fault Protection: DC fault protection and thermal trip. Fault indication on rear panel mounted LED.
Amplifier Output: 150W LF, 60W MF, 32W HF
Cabinet Dimensions (HxWxD): 980 x 370 x 344mm (inc. foot plinth & amp, spikes add 25mm to height, grill adds 34mm to depth)
Weight: 36kg
