Zappiti mini 4K HDR introduction by AVBUZZ
● Chipset: Realtek RTD1295.
● CPU: ARM® Cortex® CA53 x4 (Quad Core).
● GPU: Mali™-T820 MP3 (3 Core) (equivalent to an Octa-core Mali 450) - DirectX 11.1, OpenGLES 3.1, OpenGL 1.2, FP, ASTC, Renderscript. 4x Multi-Sampling Anti-Aliasing (MSAA).
● Operating System: 64-Bit.
● DSP: Video and Audio DSP with hardware acceleration. Native hardware 10-bit YUV support. Hardware performance optimizations for Zappiti UI.
● Cache: 1 MB L2.
● RAM: 2 GB DDR4.
● NAN eMMC: 8 GB (5.0).

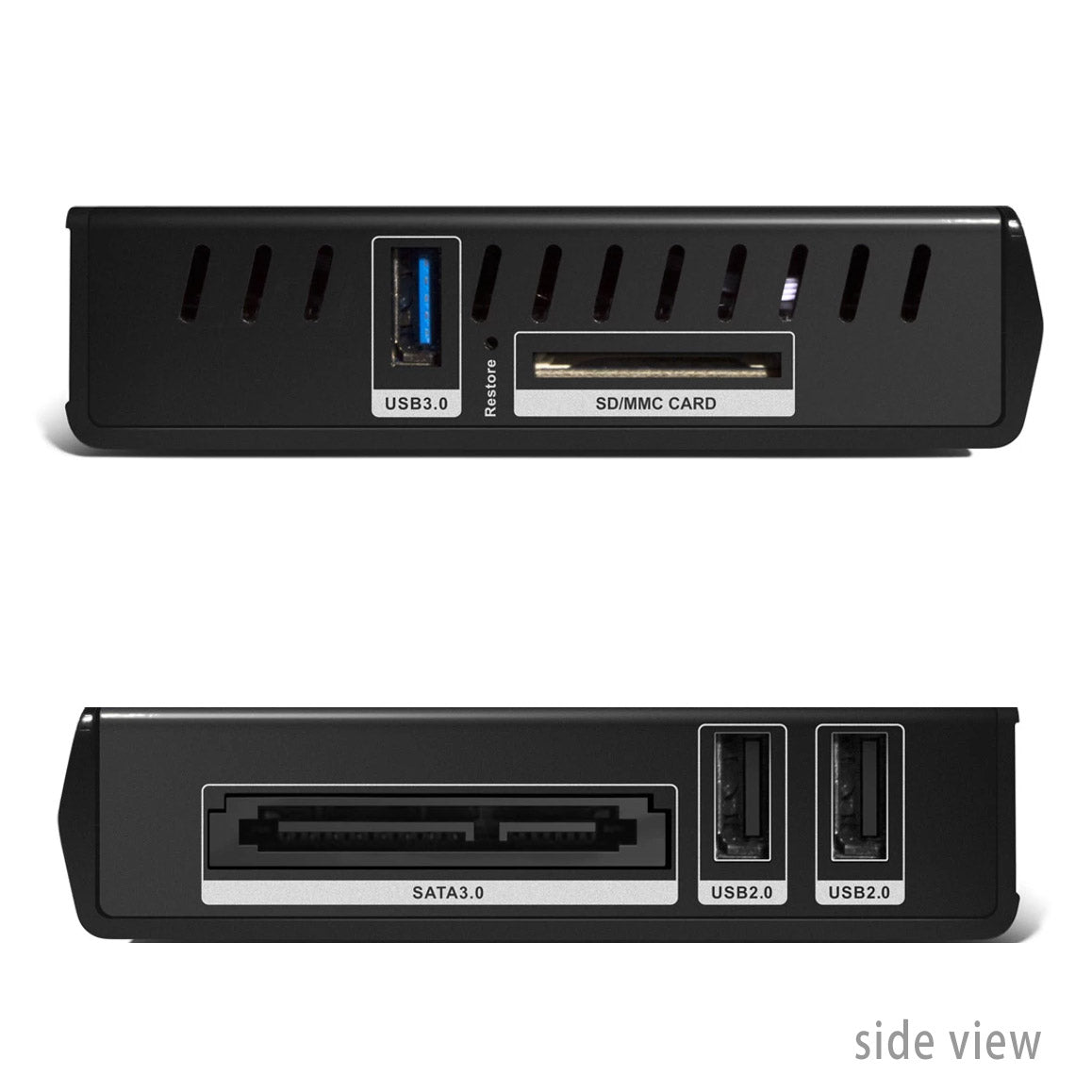

● Connectors: HDMI 2.0a (HDCP 2.2, TX/RX, CEC, Deep Color, 12 bits, xvYCC, MHL 3.0), 2x USB 2.0, 1x USB 3.0, audio / video analog output (both analog and digital outputs are active at the same time), S/PDIF optical digital audio output (Toslink), LAN Gigabit (10/100/1000 Mb/s), Wi-Fi 5G, SD / MMC card reader, AC connector, AC button On/Off (at the back), LED display on front panel controlled with RC.
● SATA connector: Easily and quickly connect external SATA HDD (up to 16 TB pre formated HDD) to the Zappiti Mini 4K HDR with fast connexion (up to 6 Gbit/s in SATA III).
● Media sources: External HDD (USB), USB devices (USB flash drive, USB card reader, etc), built-in SD card reader (SD/SDHC/MMC), PC and NAS in local network SMB, other Internet and local network media sources. External multi-bay USB storage enclosures supported.
● Internet navigator: Connect a computer mouse and keyboard to browse the Internet as on a computer.
● DLNA Server: MiniDLNA Server (OpenWRT).
● SMB Client/Server: Zappiti Share, OpenWRT.
● FTP Client/Server: Transfer your files using FTP protocol (OpenWRT).
● Video codecs: HEVC, H.265, x265 (up to Main10 Level 6.1 High 60p in 4K), MVC, AVC, MPEG-2, MPEG-4, VC-1, H.264/x.264 (up to 60p in Full HD and 24p/20 Mbps in 4K), FLV, AVS, XVID, DIVX (from version 4), Sorenson Spark L70, VP9 HW (up to 4K 60p); ultra high bitrate support (up to 400 Mbit/s in HEVC 4K).
● Video file formats: UHD ISO, 3D BD ISO, BD ISO, BDMV, MKV, MKV 3D, MK3D, MPEG-TS, MPEG-PS, MPEG, MPE, MPG, TS, TP, M2TS, VOB, AVI, MOV, MP4, QT, WebM, DVD-ISO, VIDEO_TS, RMVB, RM, DAT, VOB, 3GP, FLV, DAT, AVCHD 2.0 (AVCHD 3D, AVHD Progressive).
● Video output flexibility: Output video in any resolution and format from SD to 1080p, Ultra HD (3840x2160) and 4K (4096x2160). Up to 4K 60p. Display your movies in true 24p (23,976 Hz output).
● Audio Codecs: AC-3 / Dolby Digital, EAC3, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD, DTS:X, MPEG, MP3, ALAC, APE, M4A, AIFF, WAV, VSELP, FLAC (2.0 only) , AAC, AAC-LC, HEAAC, HE-AAC v2, AMR-NB, OGG (Ogg/Vorbis), RA_COOK, LPCM, PCM, ADPCM, FLA, MQA; lossless and audiophiles formats support (up to 24-bit / 192 kHz). DSD format is supported only using third party apps .
● Zappiti Music: Album cover thumbnail support (internal and folder.jpg), folder playback (including sub folders), random (shuffle), repeat playlist, repeat title, favorites and excludes, playlists creation and management. Control the music playback using Zappiti Music Control app for smartphone or tablet (Android/iOS) without the need of TV. Musical slideshow for live concerts or display the internal pages of album booklet or the back cover (via Zappiti Explorer).
● AirPlay: Zappiti lets you share musics, from Apple devices (iPad, iPhone, iPod) to your Zappiti Mini 4K HDR using Airplay. Simply tap the AirPlay icon on your Apple device and share the latest musics to your Zappiti. Convenient built-in controls appear on your iPhone in apps, on the Lock screen, and in Control Center — so you can easily play, pause, fast-forward, rewind, and adjust the volume on your TV or AV receiver.
● Multichannel home cinema audio: Bitstream, downmix stereo (DTS, DTS-HD MA, DTS-HD HRA, DTS:X, Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos).
● Force SD Audio: In SPDIF output, multichanel HD audio formats are donwmixed in Dolby Digital or DTS (if Core) or stereo (if not core). Note: Only HDMI can support HD audio formats such as Dolby TrueHD or DTS-HD.
● Subtitle formats: SRT (Subrip / external), SUB (MicroDVD) (external), text (MKV), SSA/ASS (sous-station alpha / MKV, external), VobSub (MP4, MKV, SUB/IDX external), SMI (Sami), IDX, PGS (UHD ISO, BD ISO, BDMV, M2TS, MKV), DVBSUB (DVB-T, DVB-S, DVB-C).
● Subtitle options: Download subtitle option. 3D subtitles support with depth settings. Multi-coding. Multiple external subtitles. Default subtitle setup.
● 3D Hardware acceleration: OpenGL.
● Photo file formats: JPEG (hardware decoding), PNG, BMP and GIF with resolution up to 8192x8192 pixels (displayed in 1080p). Musical slideshow option with dynamic transition effects.
● Supported Formatting: FAT16/FAT32 (read-write), EXT2/EXT3 (read-write), EXT4 (read), NTFS (read-write), MAC OS / HFS+ journaled (read-write), ExFAT (read-write) ).
● Ethernet: 10/100/1000 Mb/s.
● Wi-Fi: IEEE 802.11a/b/g/n, 802.11ac, 2.4 GHz / 5 GHz. Dual band. Dual external antenna.
● Bluetooth 4.0: BT4.0
● Mirroring audio: Mirroring your smartphone or tablet device's sound on your TV, and listening to your favorite songs.
● Network playback: Special optimisation of the network, guaranteeing better performances of the local network playback no matter which type of media thanks to SMB protocol (HEVC UHD files included) via Gigabit Ethernet or Ethernet 10/100.
● Universal RC: Integrate seamlessly into smart home installations via ready-to-use Control4 driver, RTI driver Crestron IP codes, Logitech, Pronto, and general IP codes. Power ON and Power OFF discrete codes.
Zappiti HDR Range Comparison
Zappiti MagicPixel v2.5.
Forget expensive outboard video processors… with Zappiti, you're living the video dream! The Zappiti Mini 4K HDR incorporates Zappiti MagicPixel v2.5 technology, which offers outstanding picture quality - far better than the previous generations - with improved dynamics, accuracy colorimetry, more contrast, solid deinterlacing and better upscaling (up to 4K resolution). Even on a Full HD 1080p TV or a front projector, you will be astounded by the improved image of your display! 3D also offers greater image depth and an impressive, immersive effect.
With this new feature, your picture quality on Blu-ray ISO and SD content can be greatly improved, especially if you are using high-end 4K projector such as Sony, JVC, Epson, or if you are using dedicated scaler such a Lumagen Radiance .
